Glass sliding door system – 6 panels (width 605 cm)

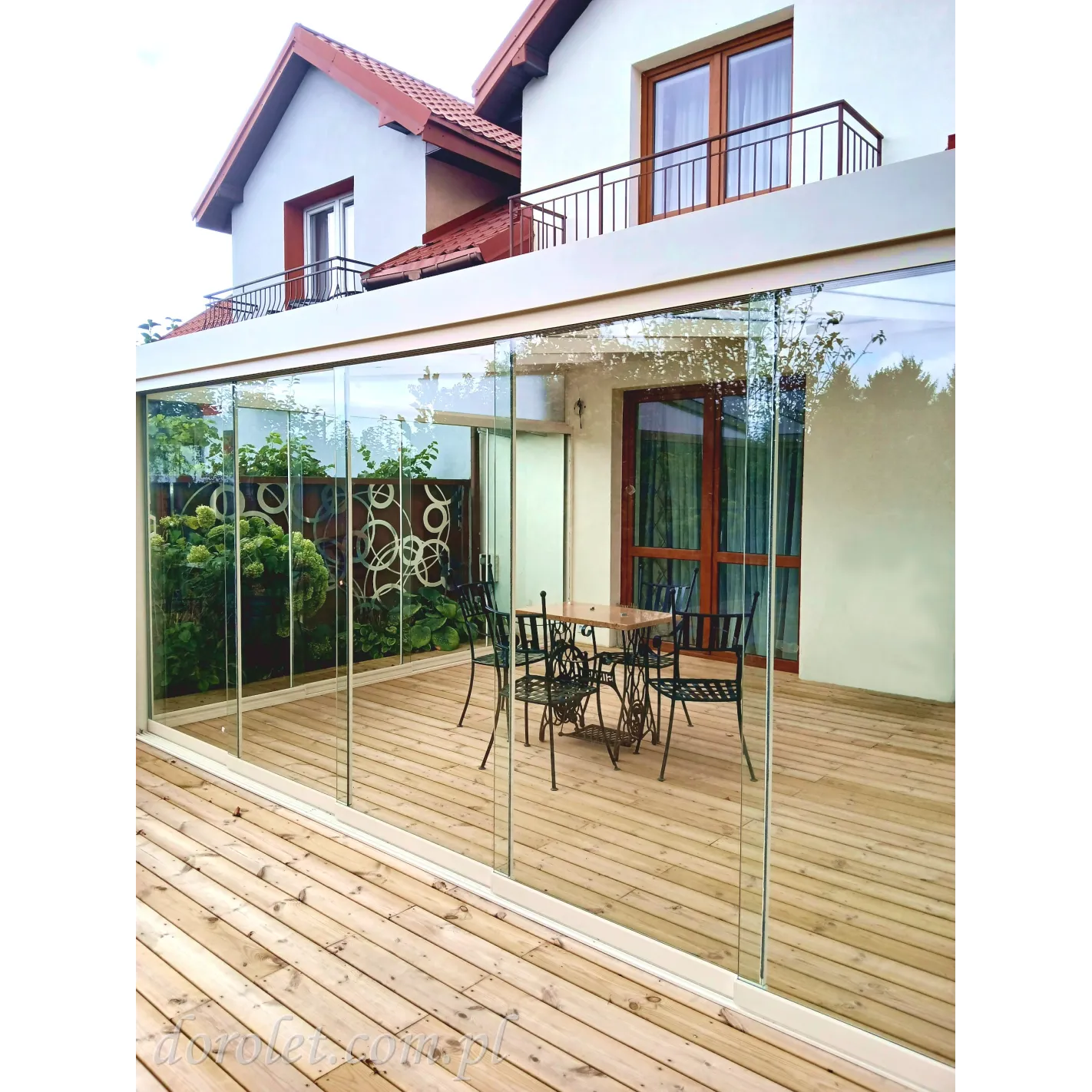

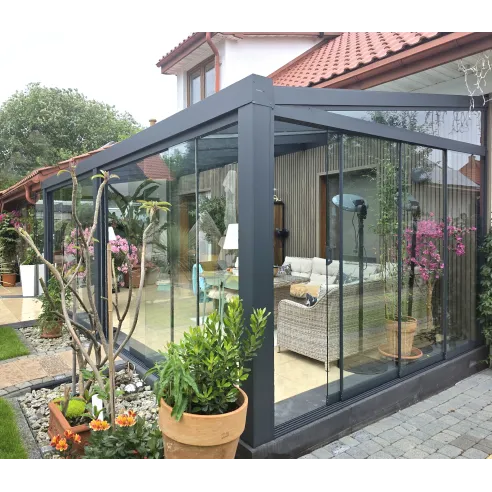

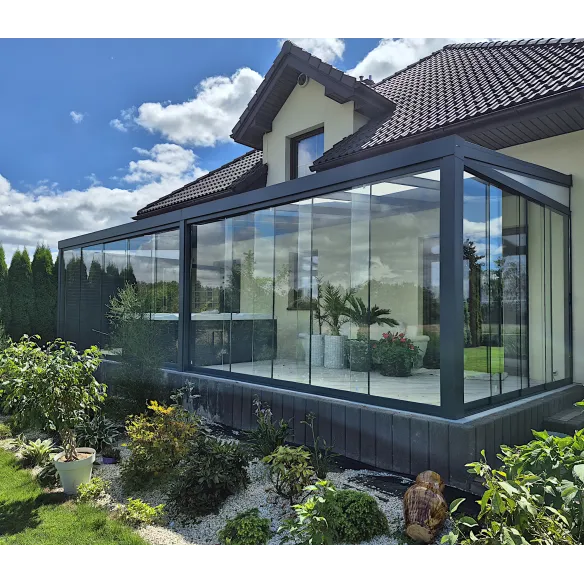

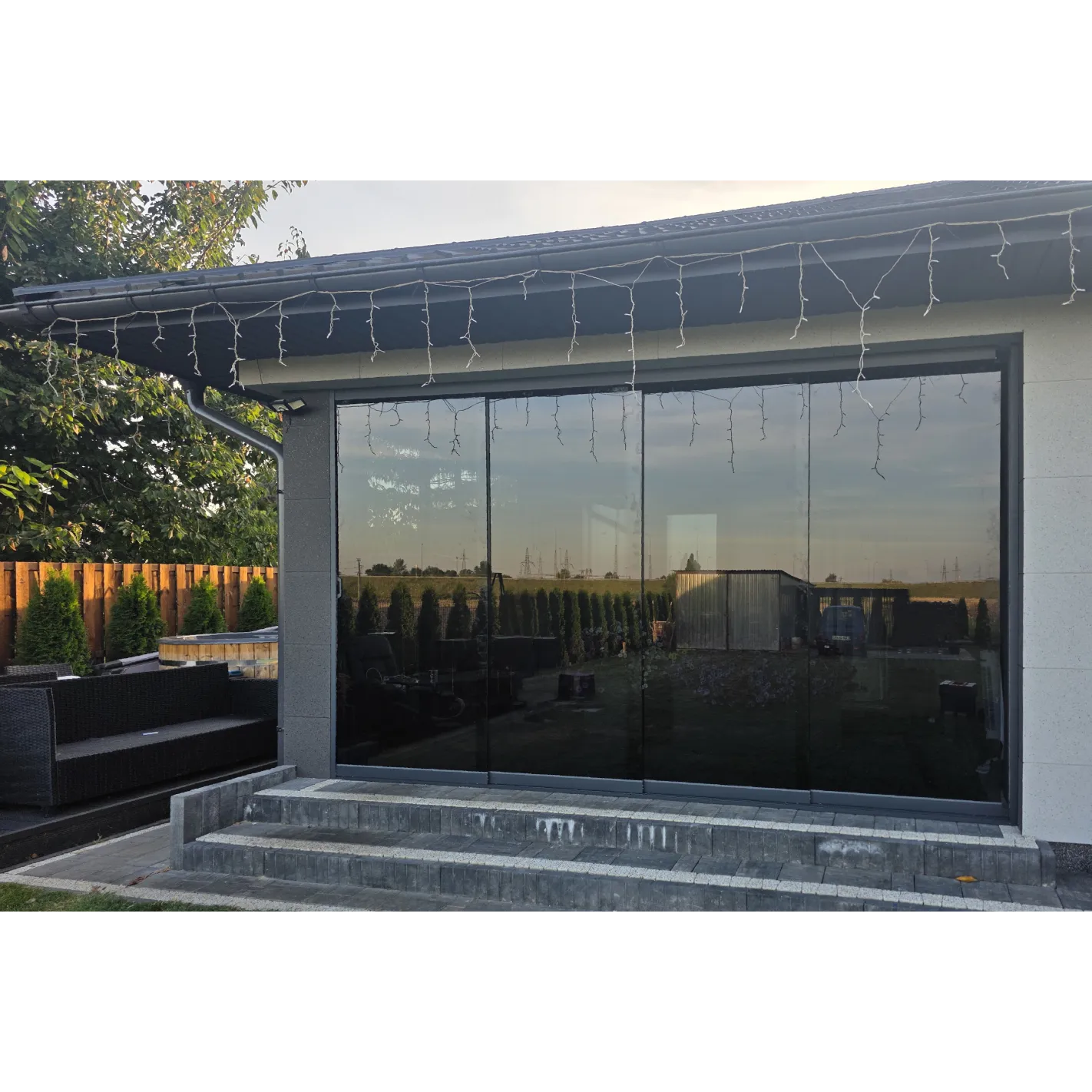

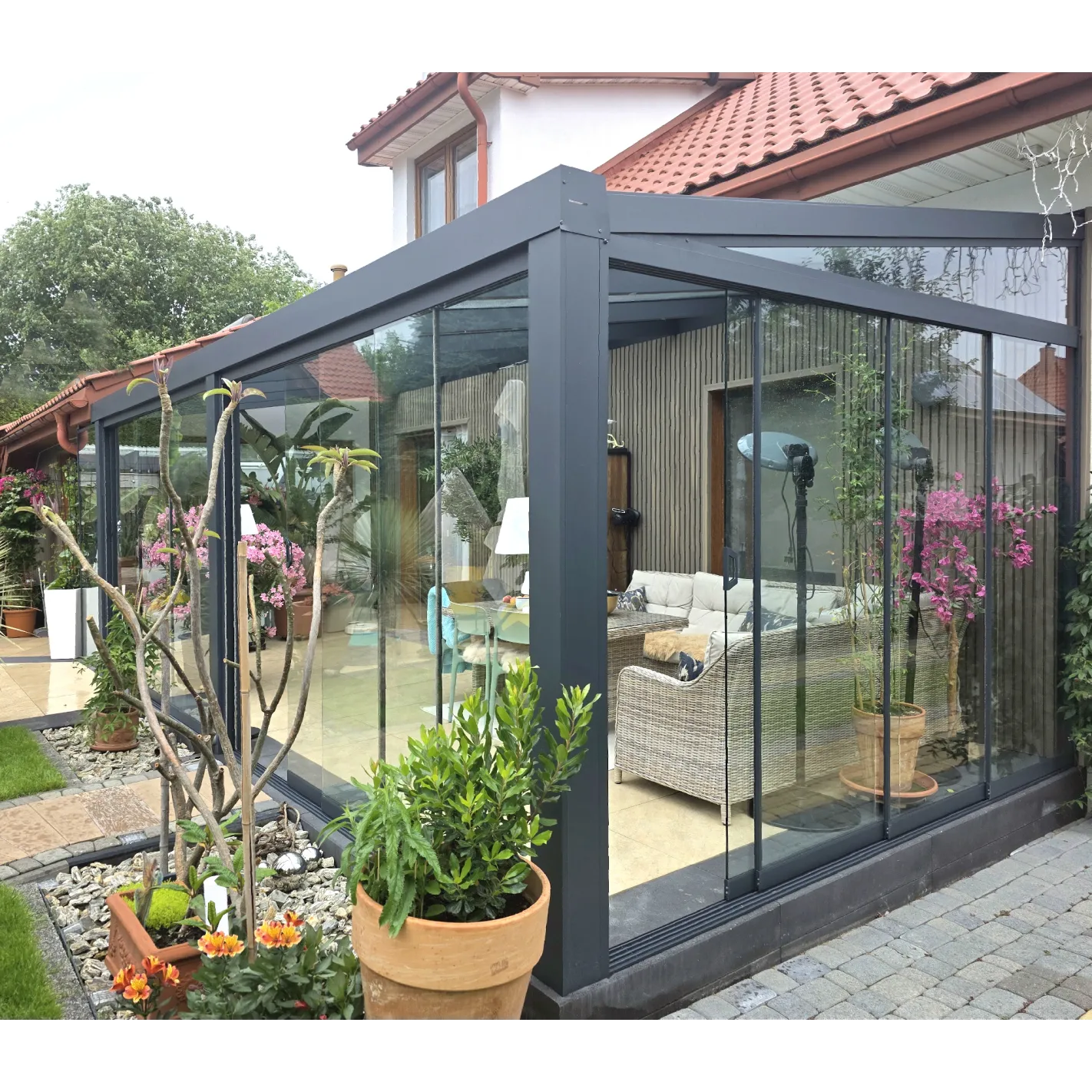

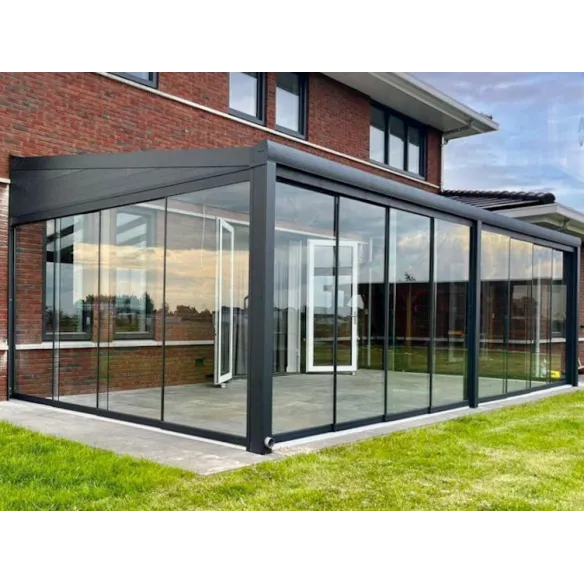

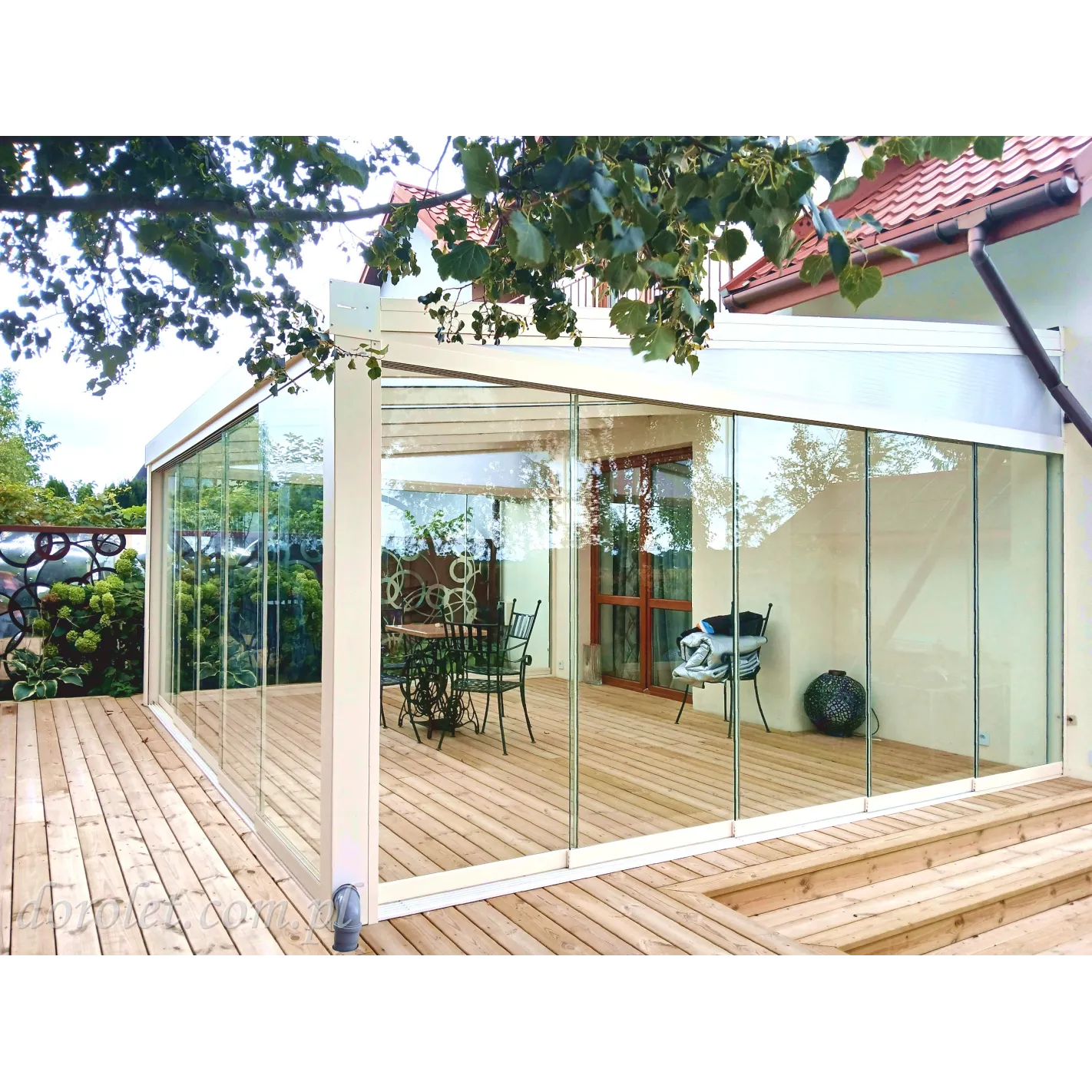

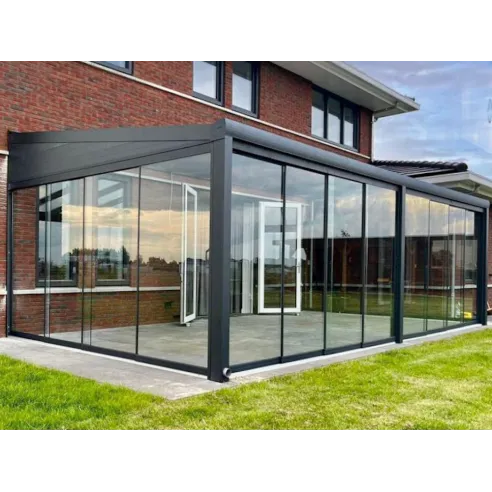

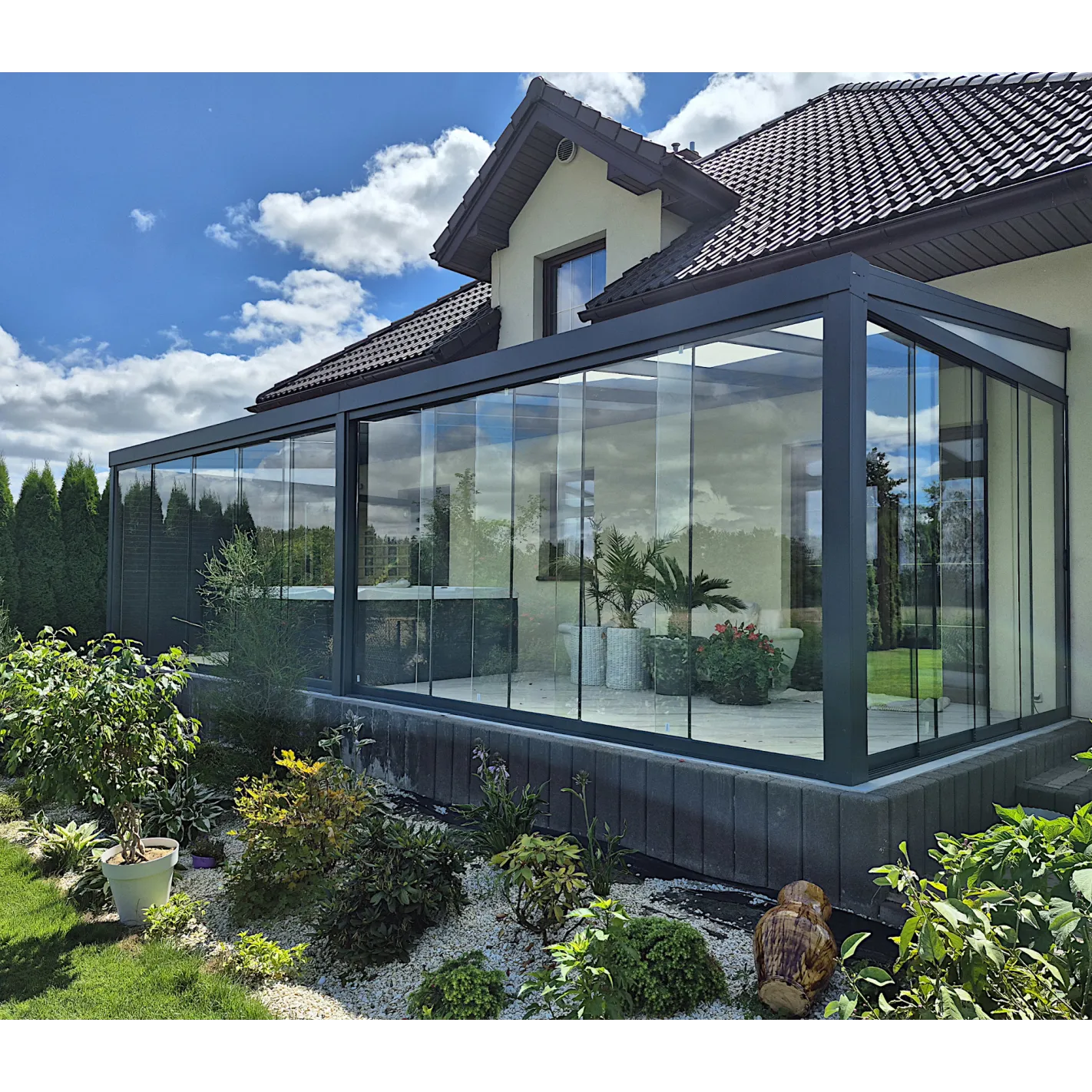

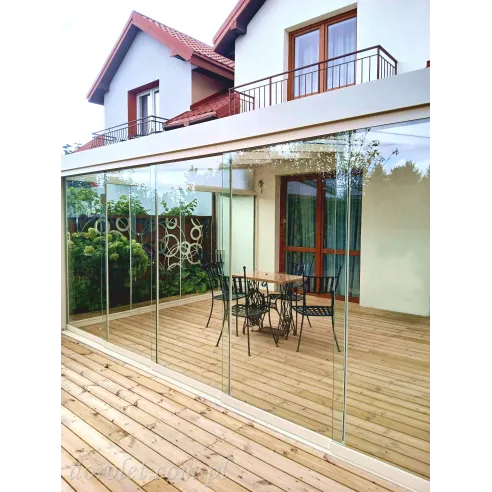

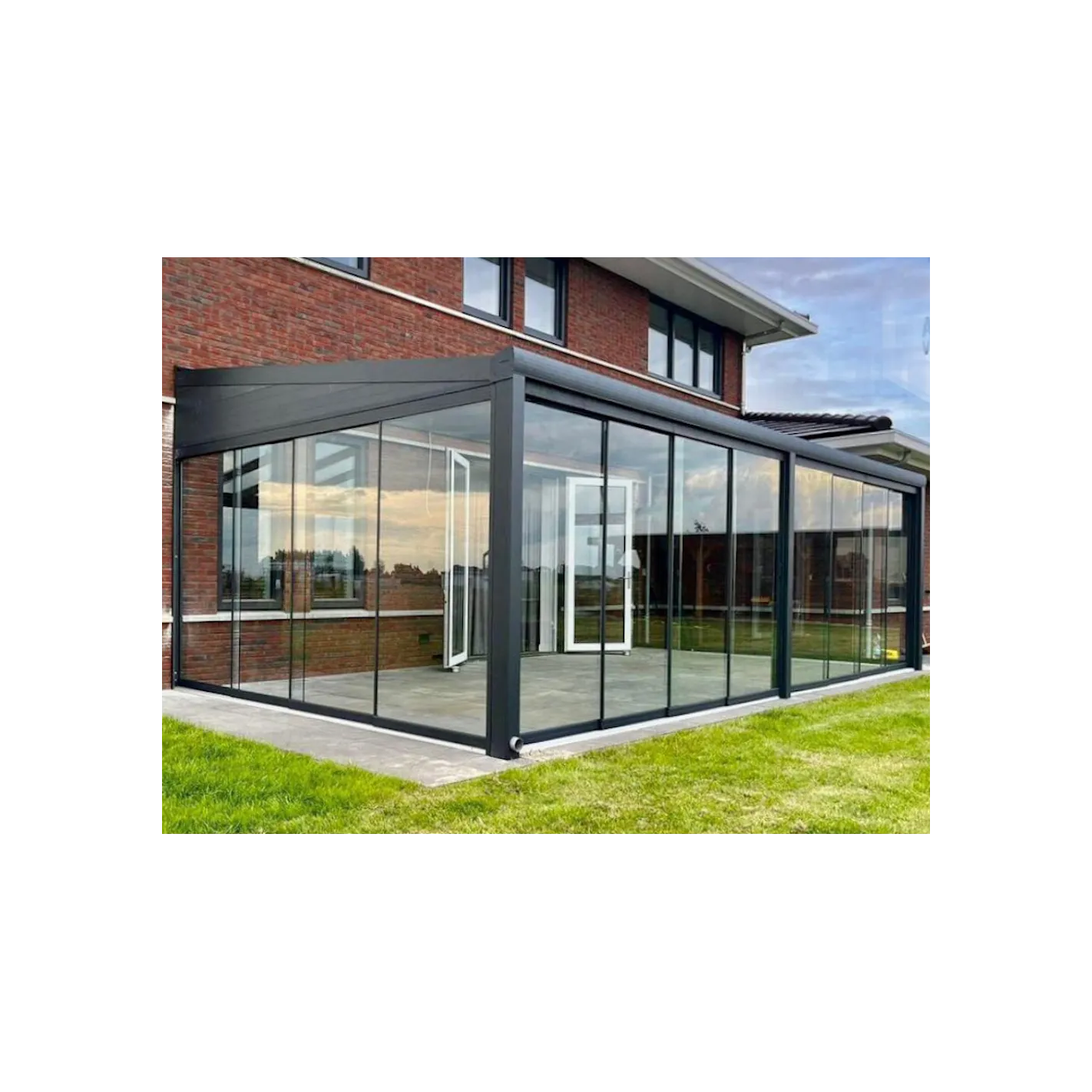

Sliding glass door system for verandas, terraces, and balconies.

The set of sliding glass panels allows for enclosing an opening with a maximum width of 605 cm.

The total height of the system is calculated including the bottom rail, top rail, and the glass panel.

Available system heights: 200 cm, 205 cm, 210 cm, 215 cm, 220 cm, 225 cm, 230 cm, 235 cm, 240 cm, 245 cm.

For the system to be installed and function properly, the opening must be 2–5 cm larger than the system height.

Set contents:

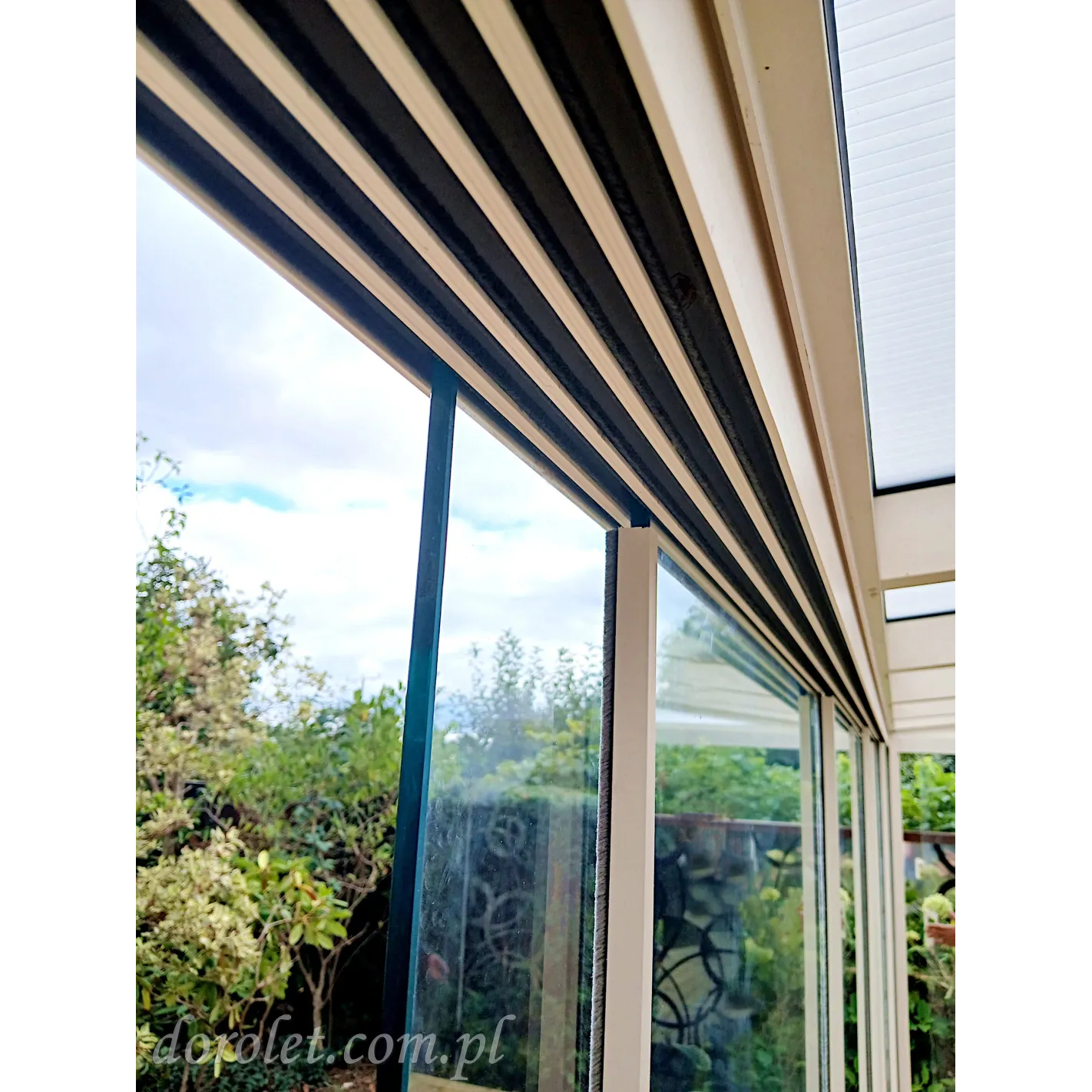

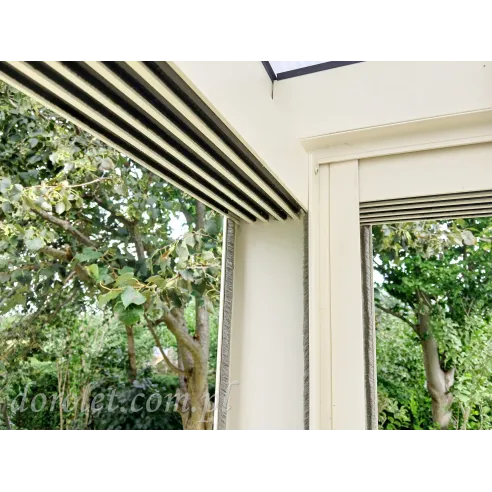

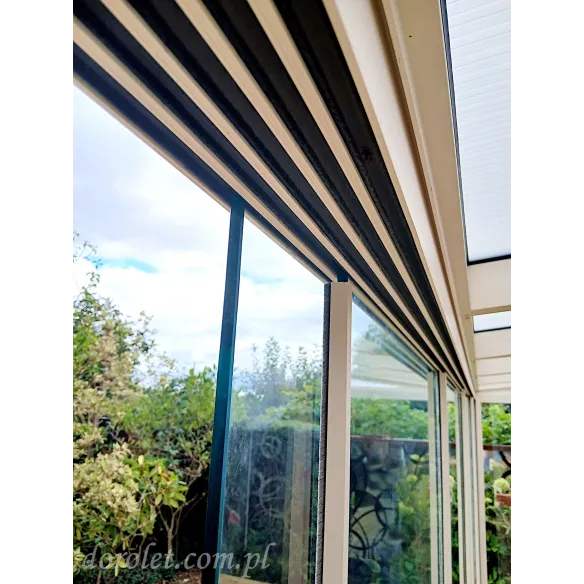

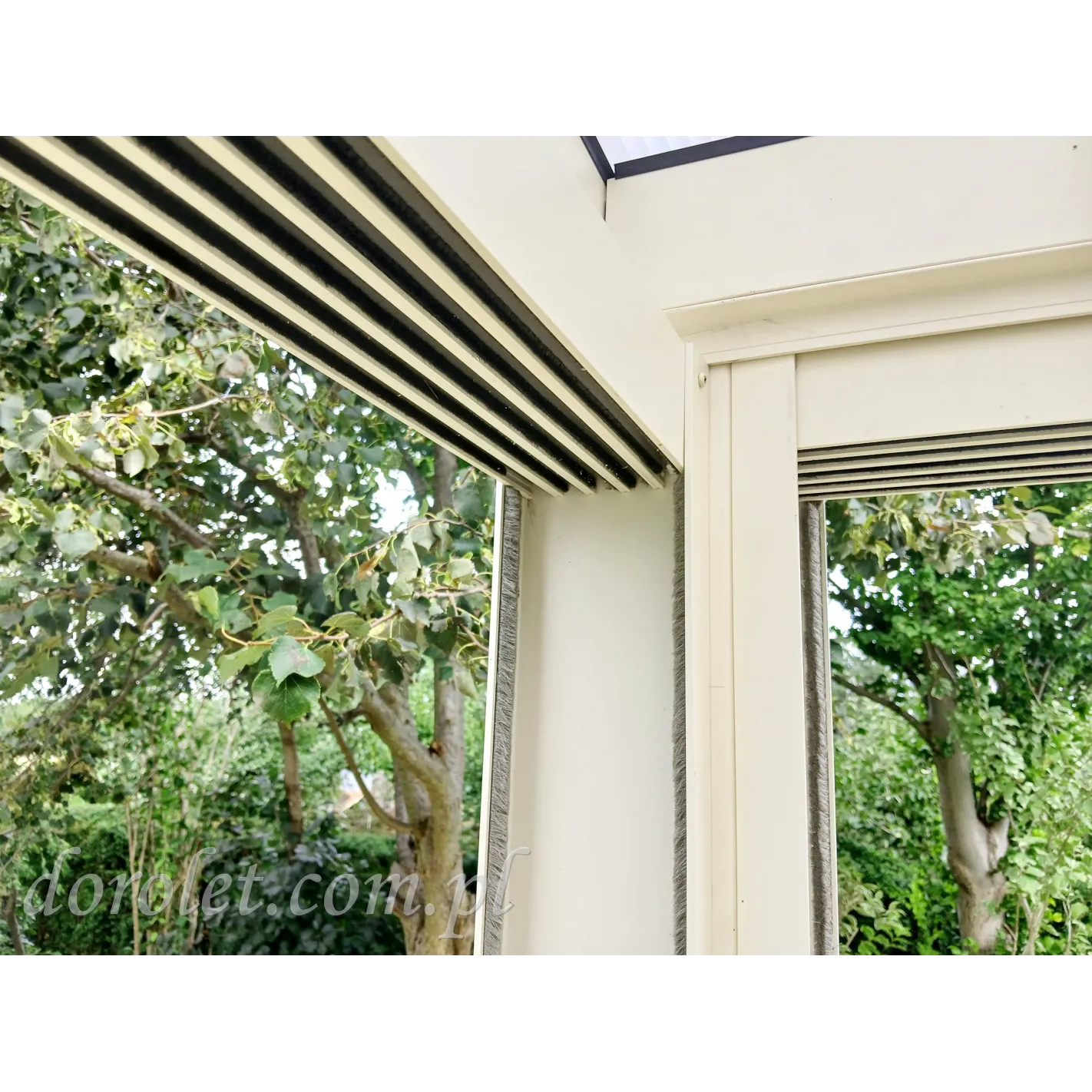

• Top profile (length: 6000 mm) – 1 pc.

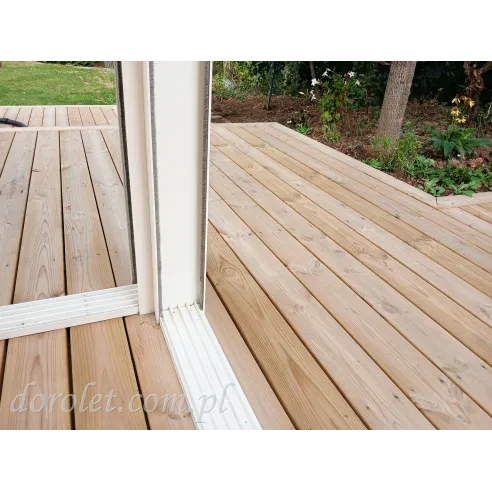

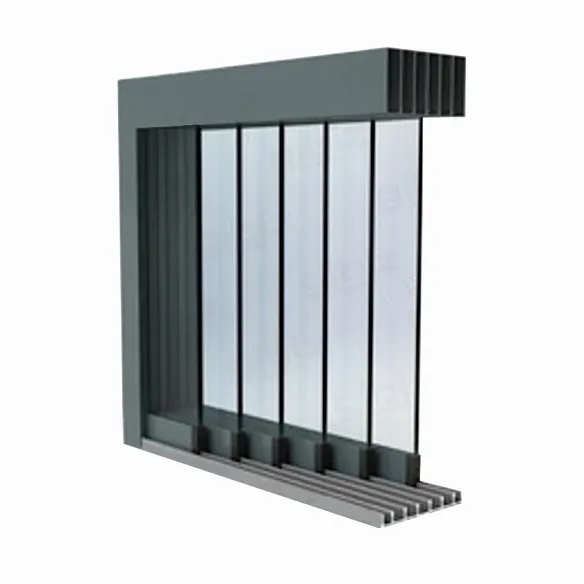

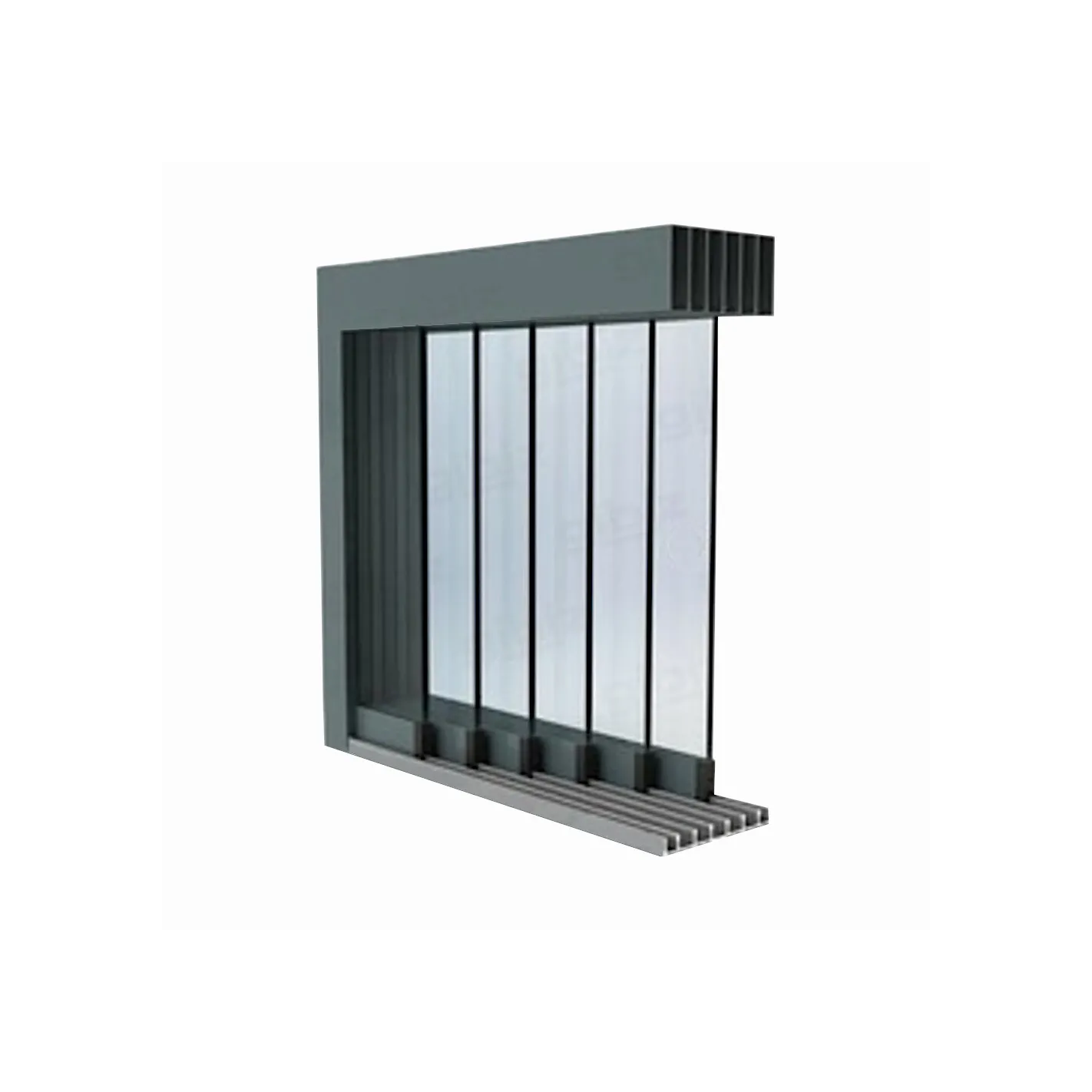

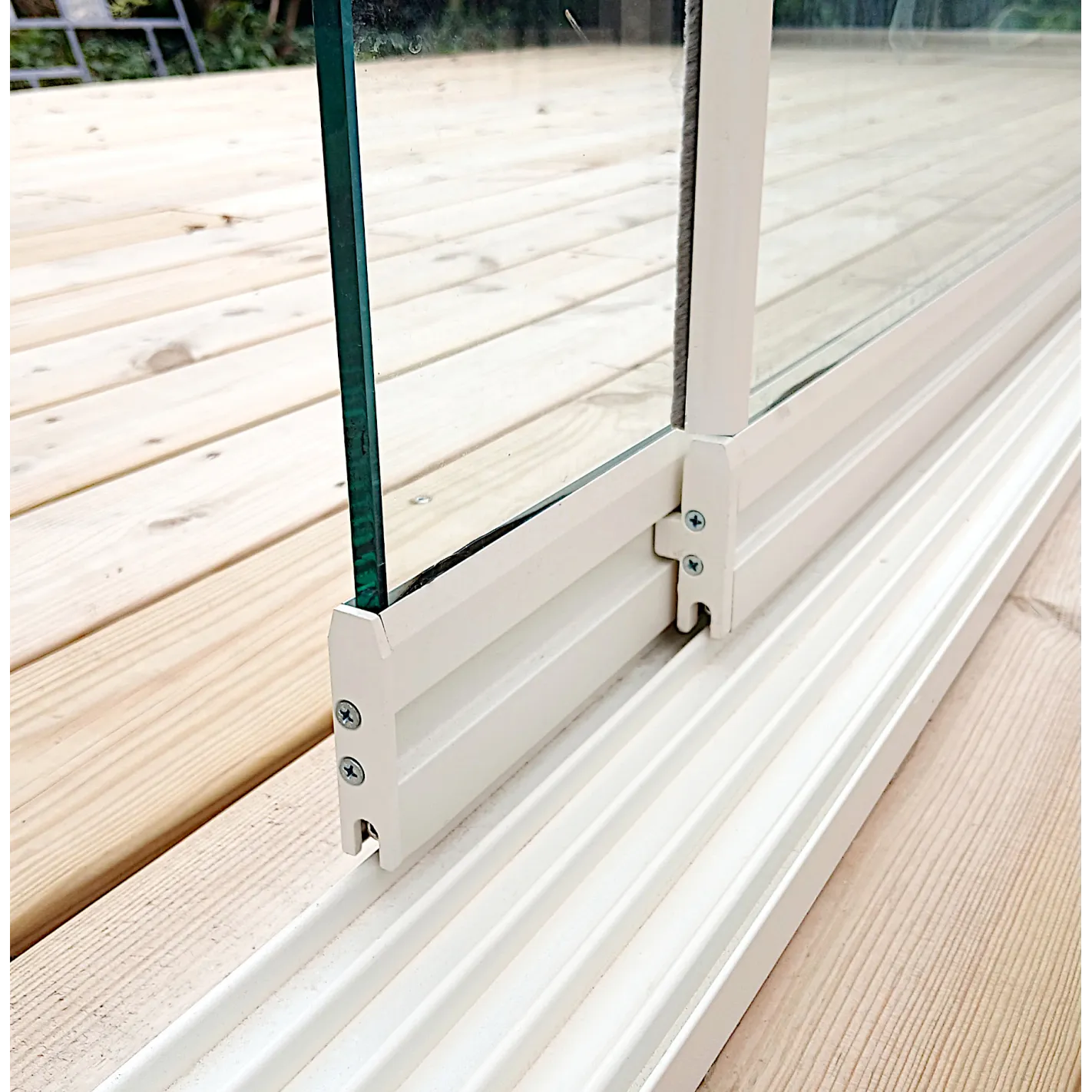

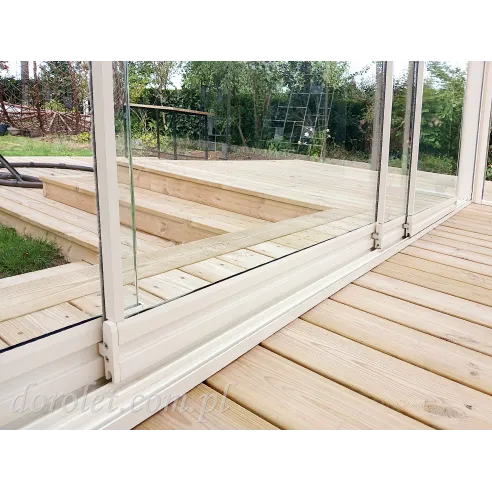

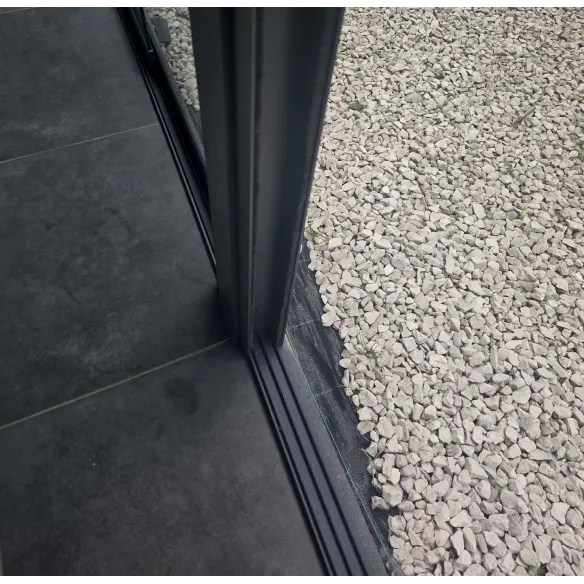

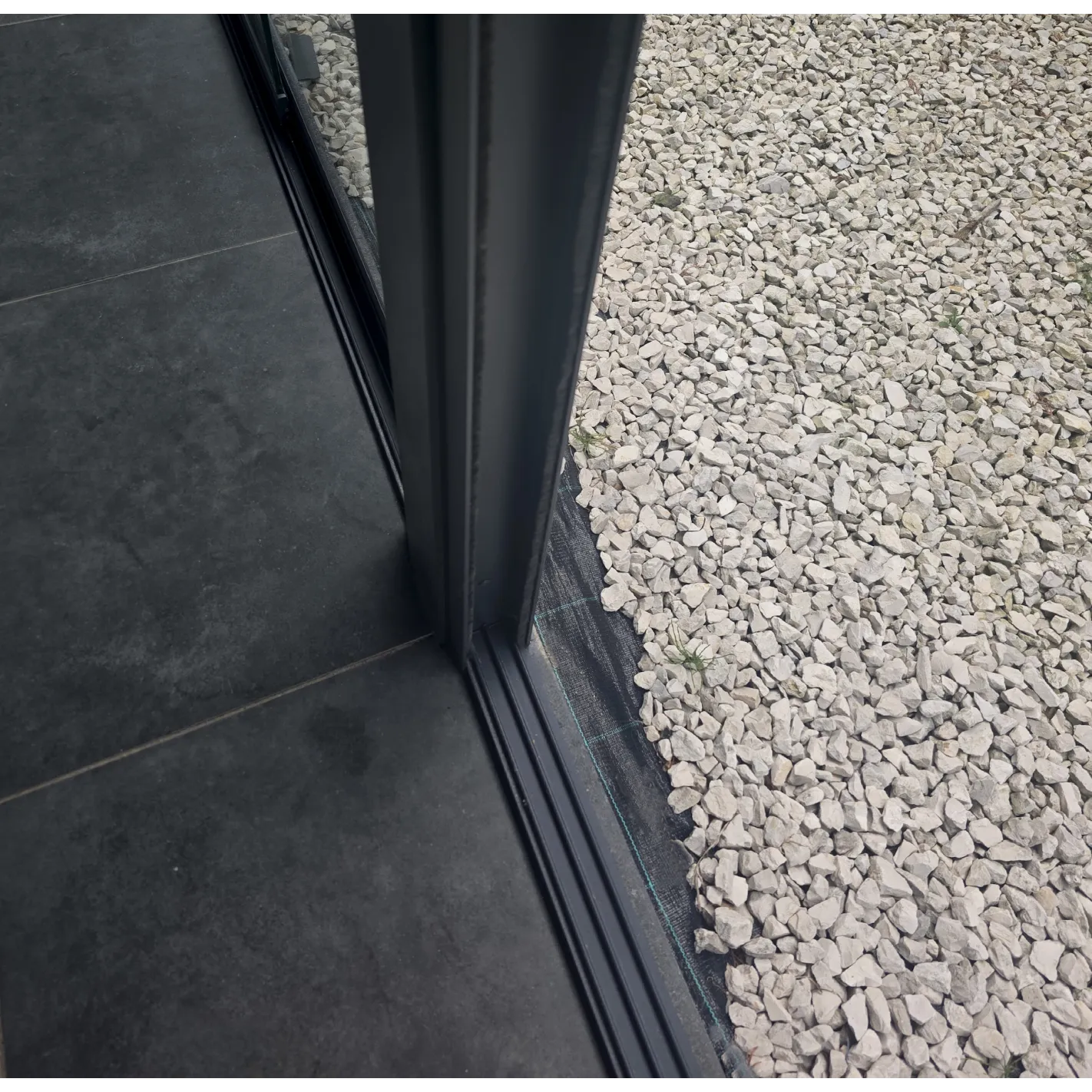

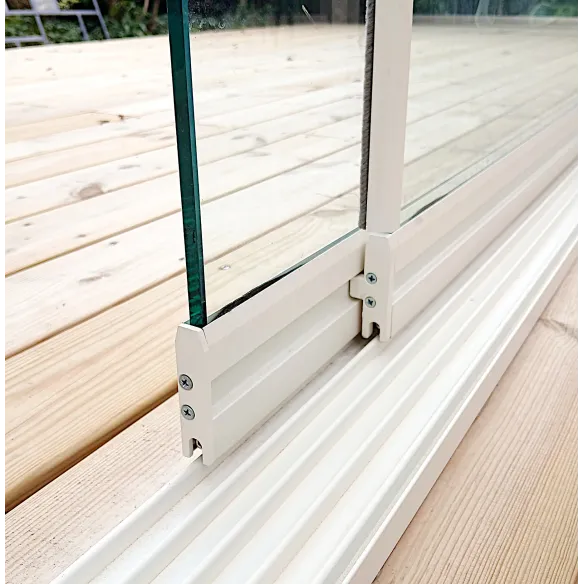

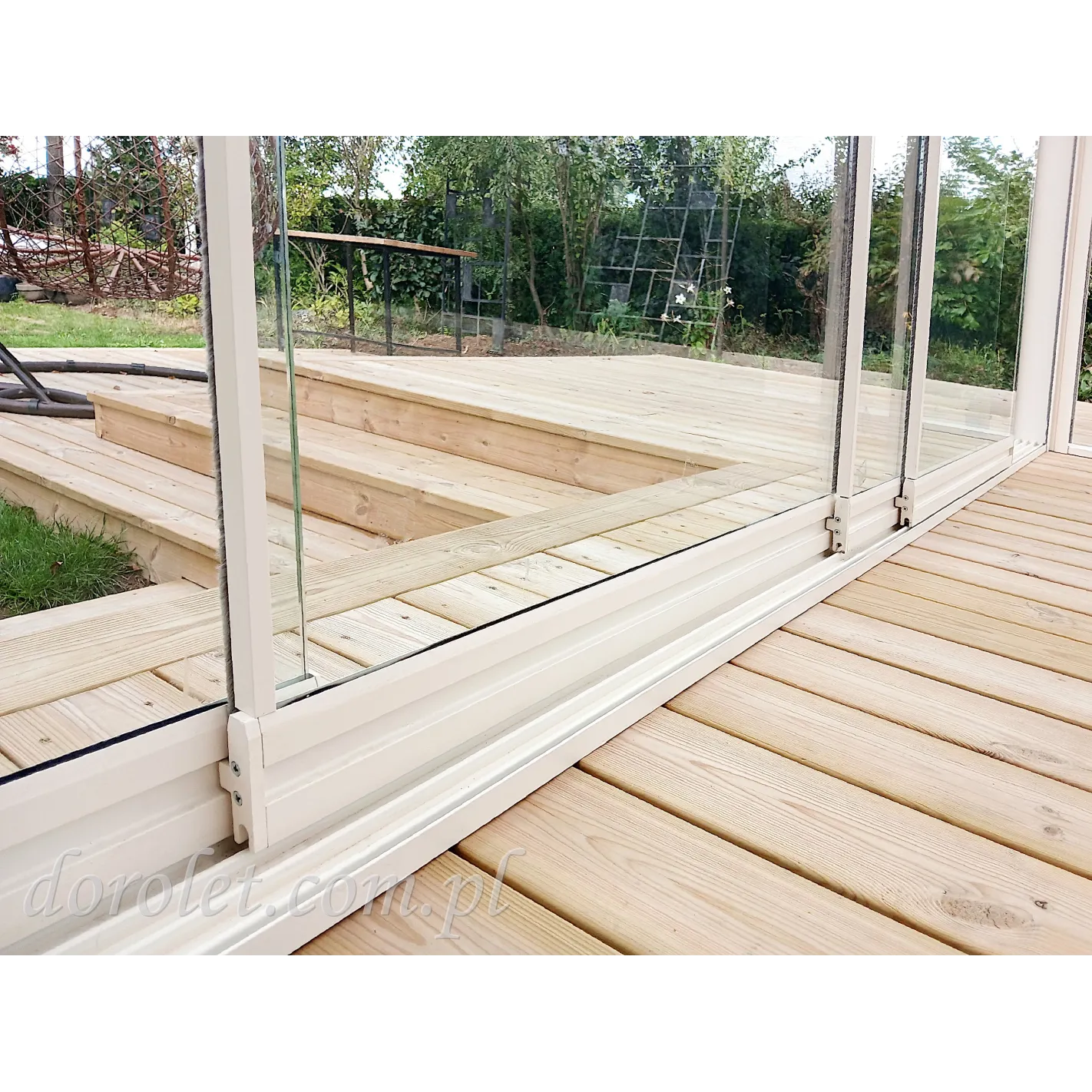

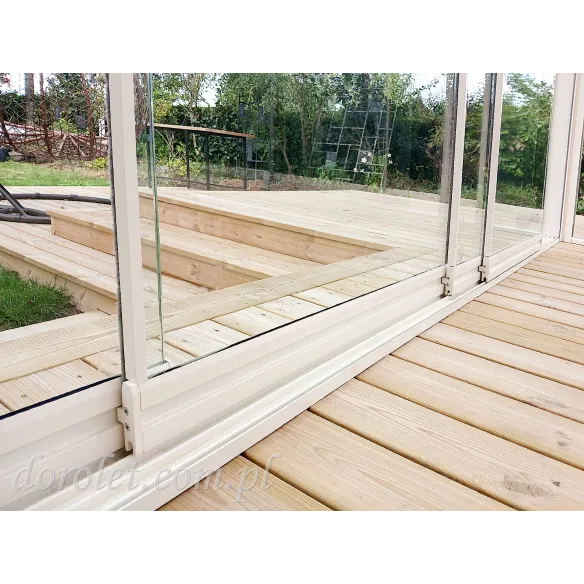

• Bottom 6-track guide rail (length: 6000 mm) – 1 pc.

• Clear tempered glass (width: 1030 mm) – 6 pcs.

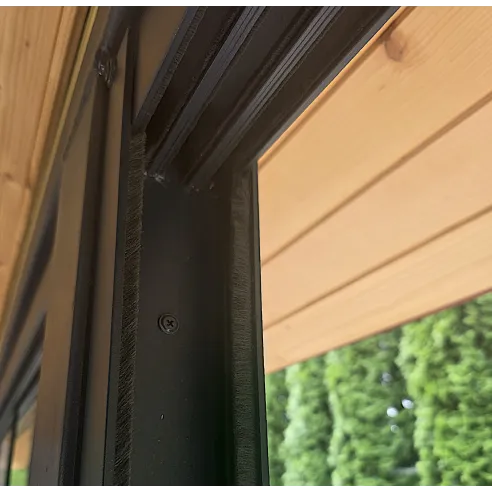

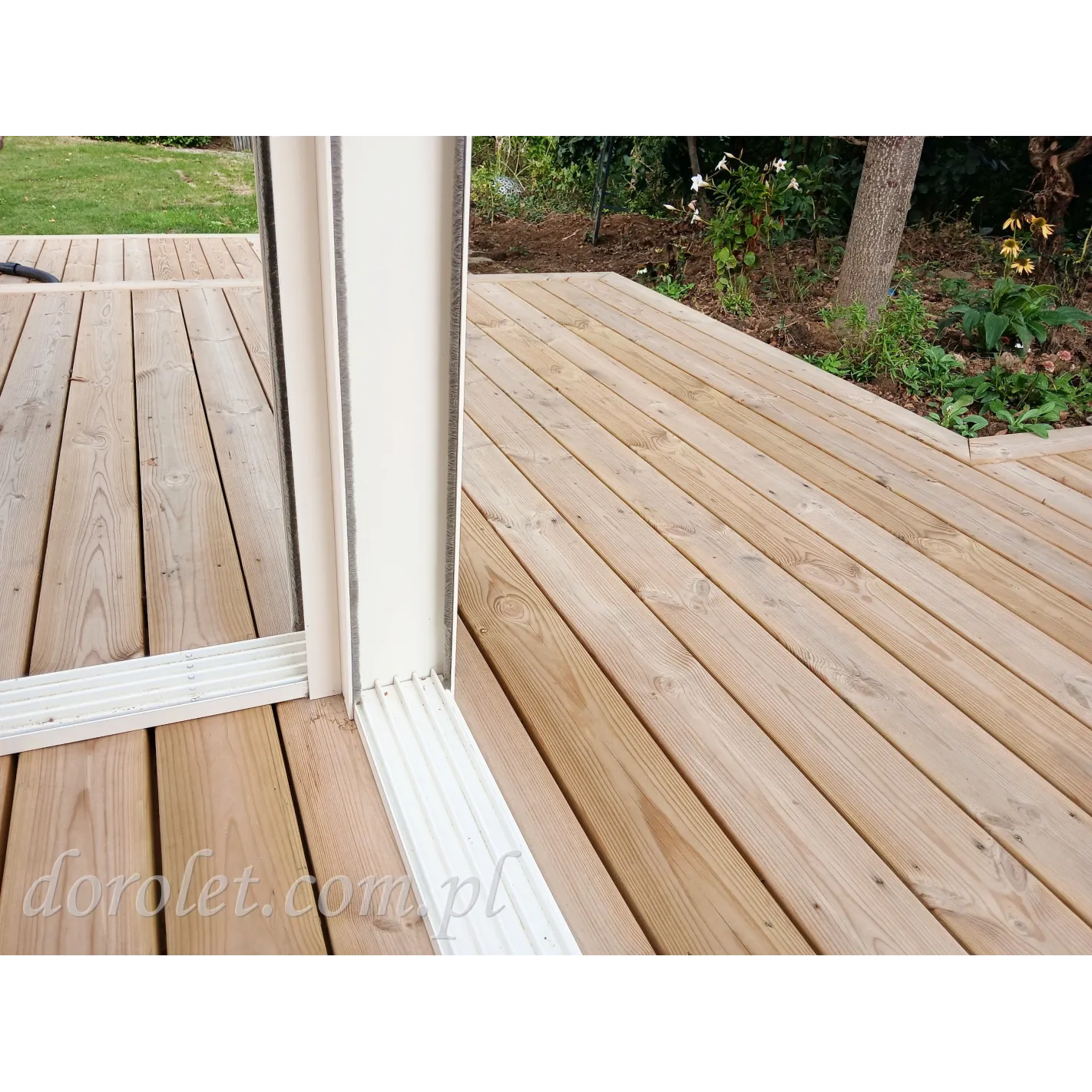

• Side U-profiles (height: 2500 mm) – 2 pcs.

• Sliding rollers / carriages.

• Vertical profiles for glass panels – 5 pcs.

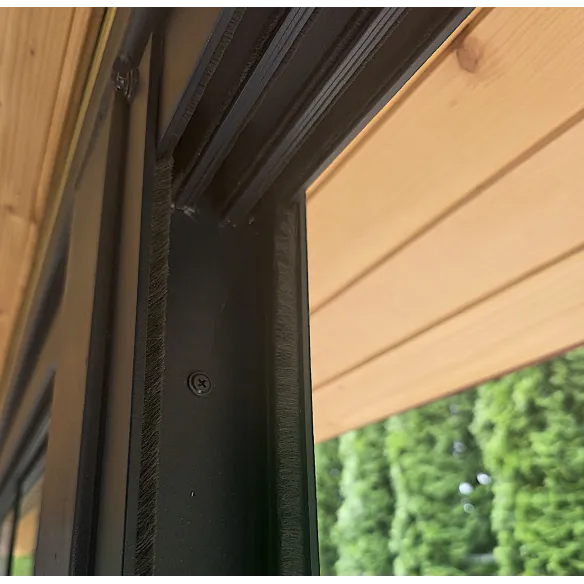

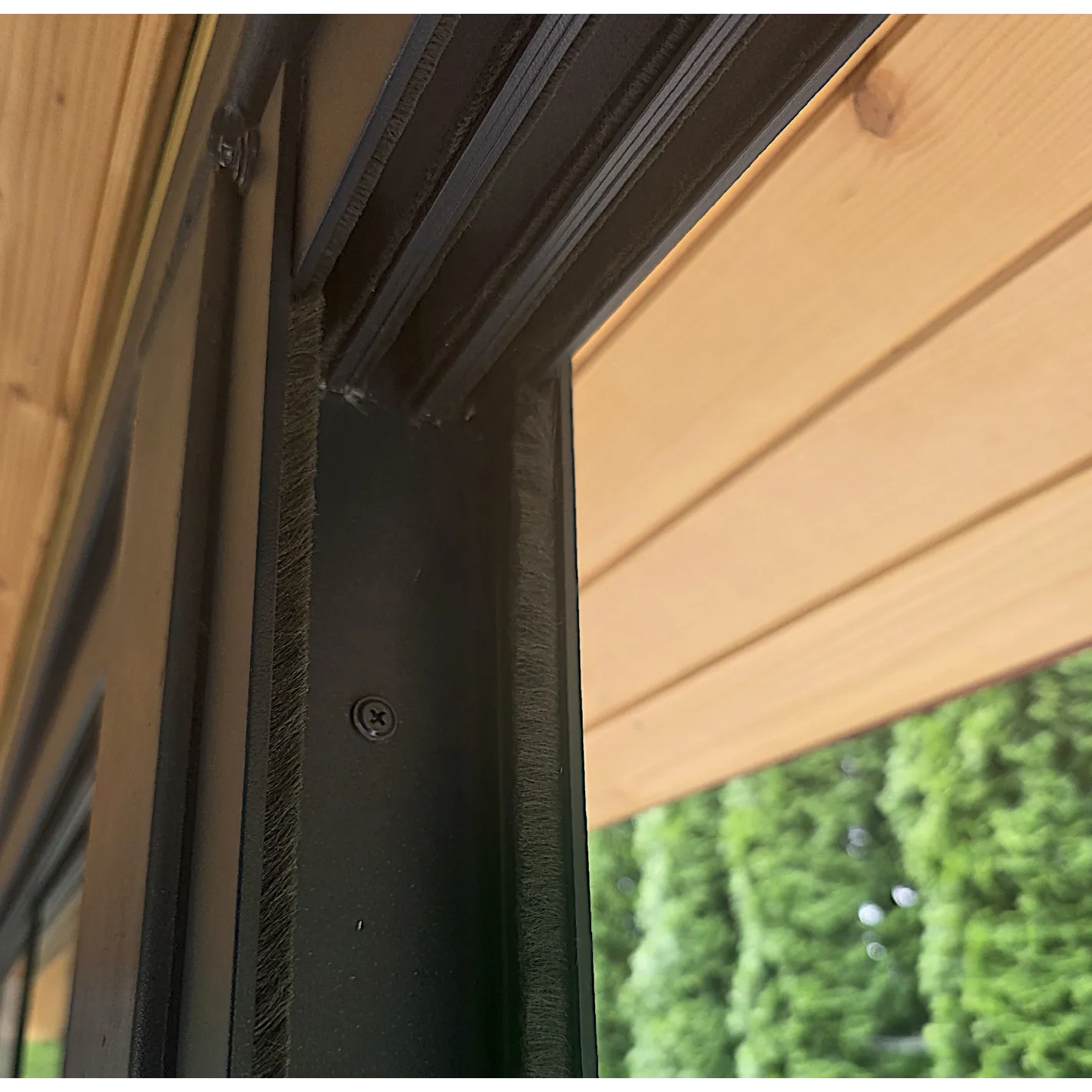

• Brush seals (ensuring tightness and quiet operation).

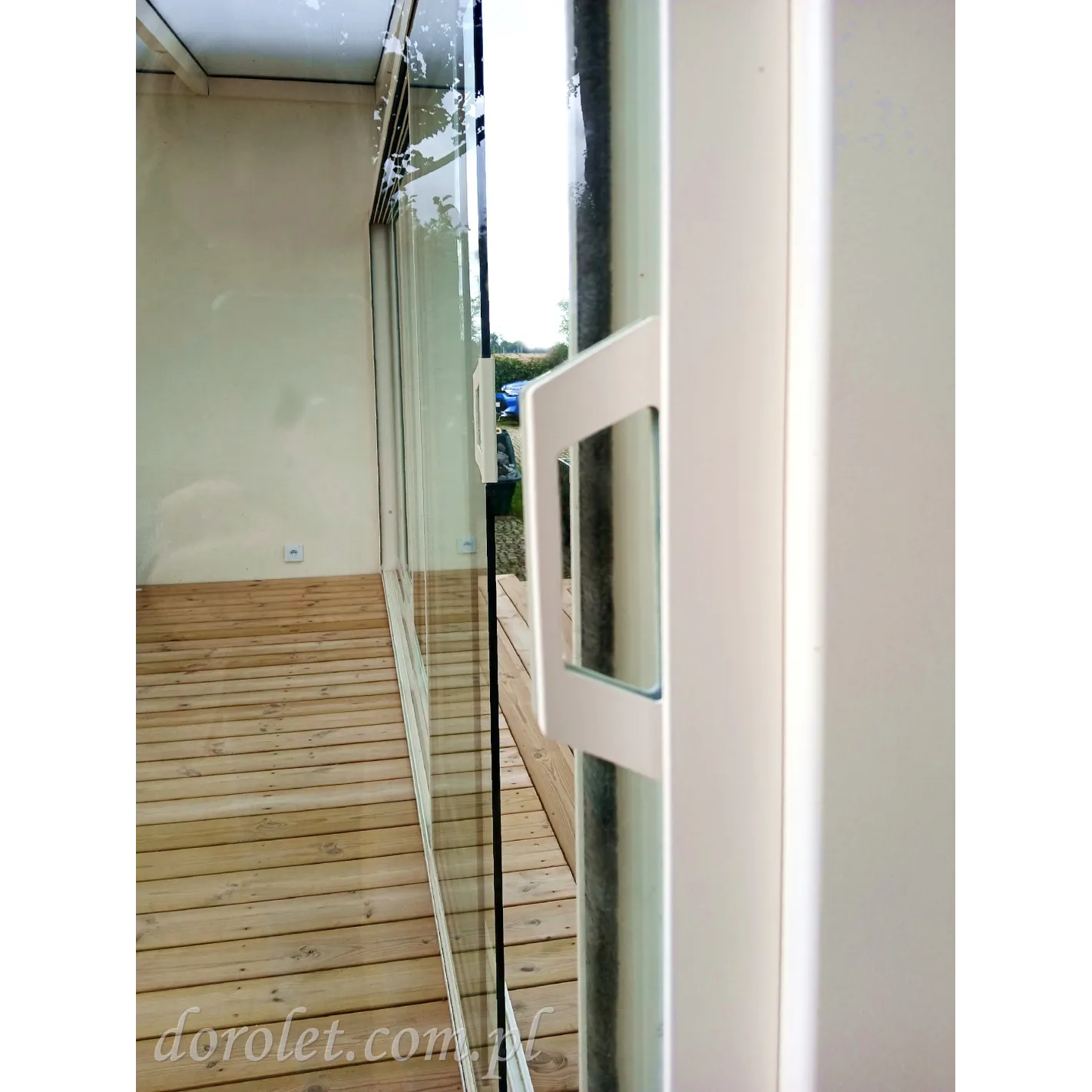

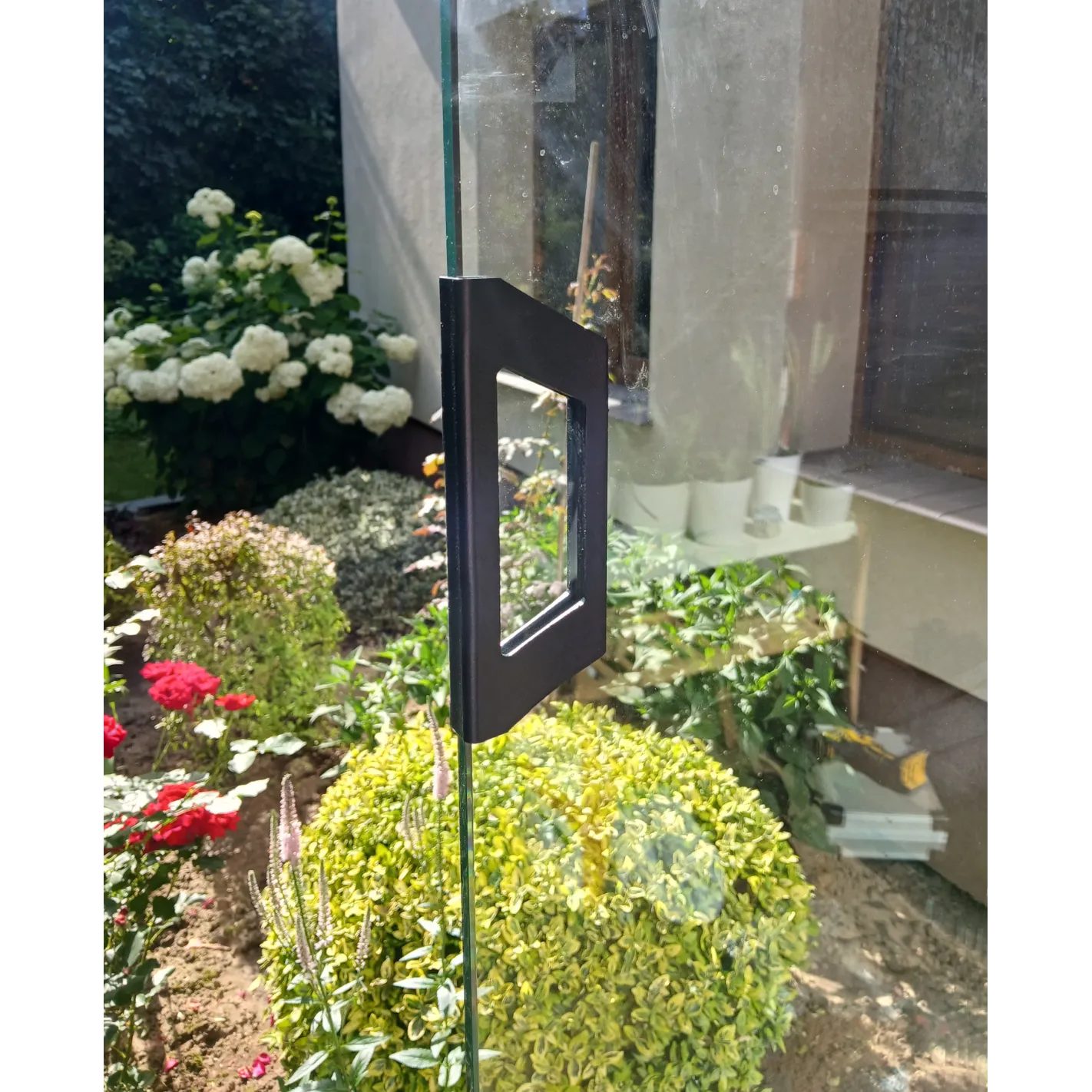

• Handle / knob – 1 pc.

Technical specifications:

• 6 sliding glass panels;

• 10 mm tempered glass;

• Powder-coated aluminium profiles;

• Available profile colours: anthracite, cream white, black;

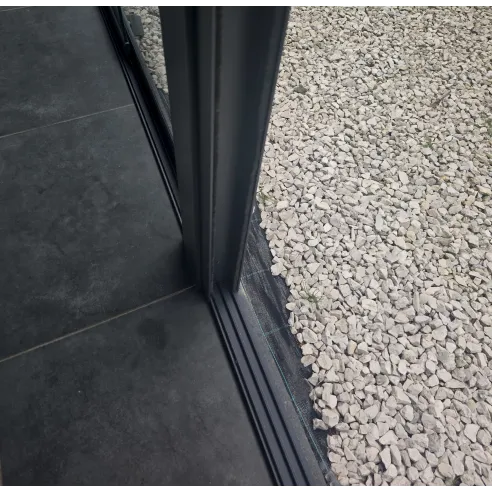

• Bottom profile (4-track guide rail) height: 20.7 mm; (Note: listed as 4-track in source text)

• Available glass panel heights: 1930 mm, 1980 mm, 2030 mm, 2080 mm, 2130 mm, 2180 mm, 2230 mm, 2280 mm, 2330 mm, 2380 mm;

• Profiles can be shortened to adjust the system to a narrower opening.

• Option to order tinted glass – surcharge of PLN 1,200.00 gross.

Important: How to choose the correct system height?

To ensure proper installation and trouble-free operation, the mounting opening must be 2–5 cm higher than the total height of the selected system.

Calculation example: If you choose a system height of 200 cm (where the glass height itself is 193 cm), your mounting opening should be between 202 cm and 205 cm high.

Please measure the opening height accurately at several points before purchasing.

Key pre-installation information:

For the system to operate smoothly and reliably for years, please pay close attention to the surface preparation. The mounting opening must be precisely leveled, and the base must be stable and hardened (we recommend pouring a concrete screed or mounting on a concrete slab).

Lead time: approx. 30 working days.

Delivery options:

• Personal pickup from our warehouse.

• Company transport (safe delivery to the specified address). Transport cost is approx. PLN 4.50 gross per kilometre (calculated both ways).
