Swivel handle for Window Screen Frames

Rotary handle (Swivel Bracket) for Window Screen Frames

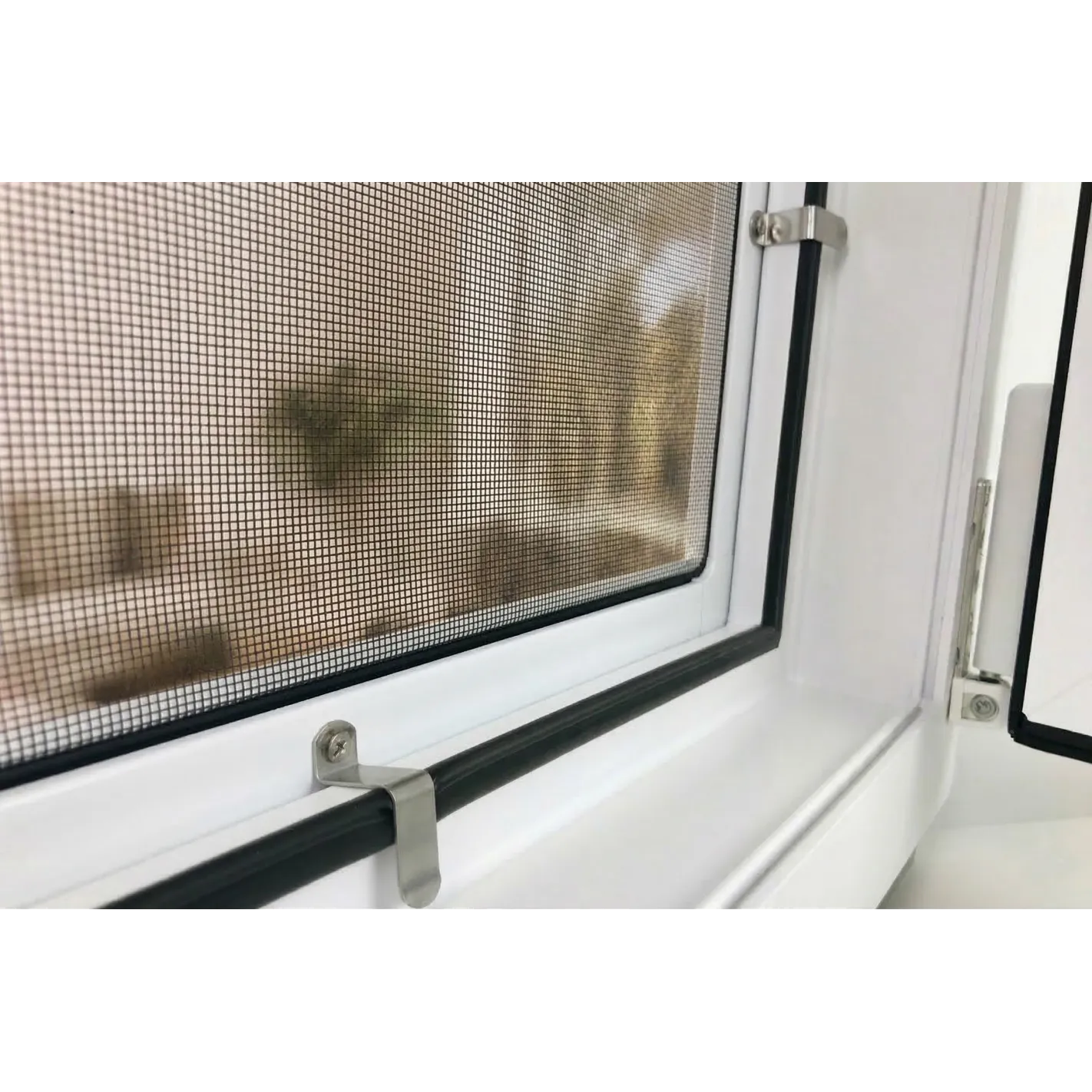

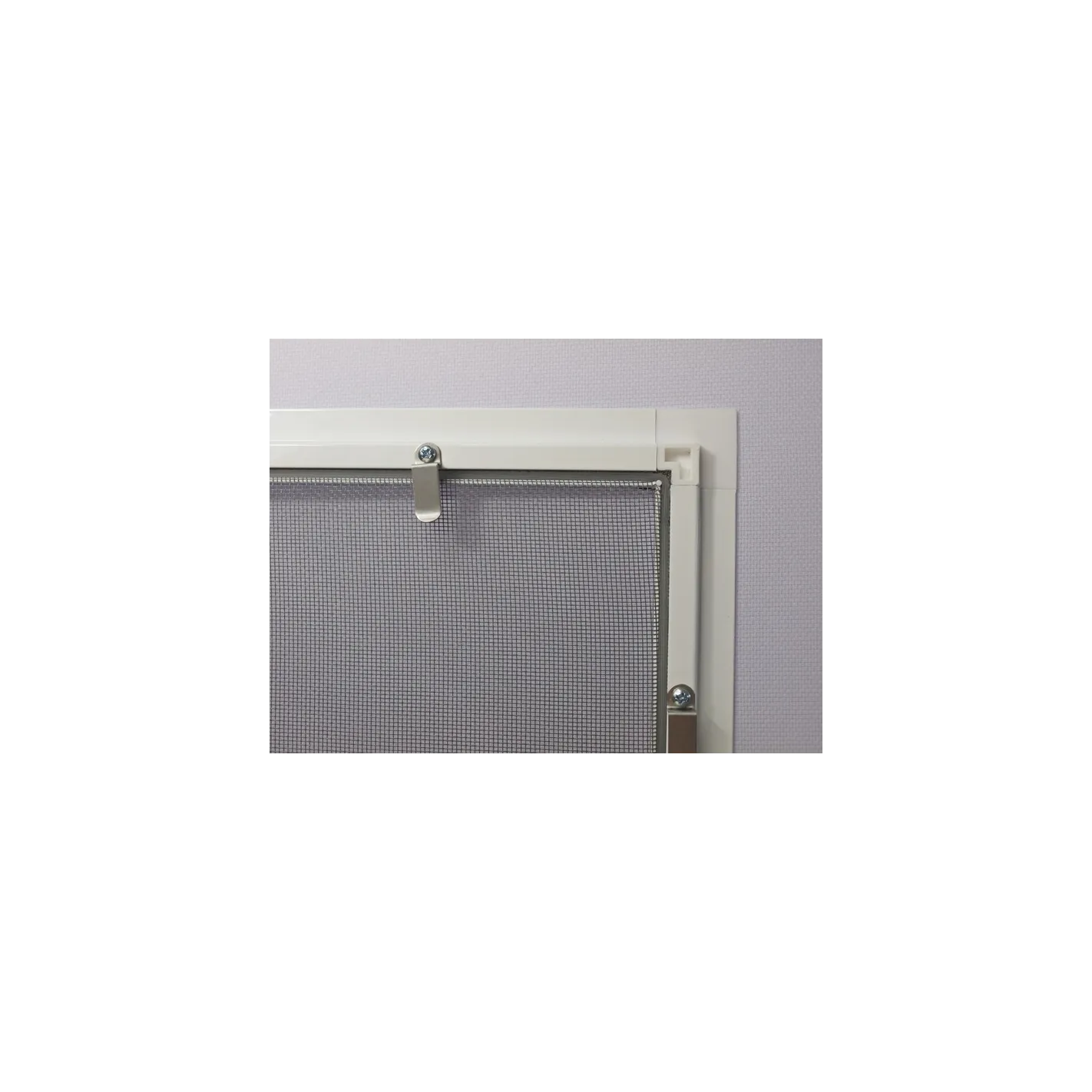

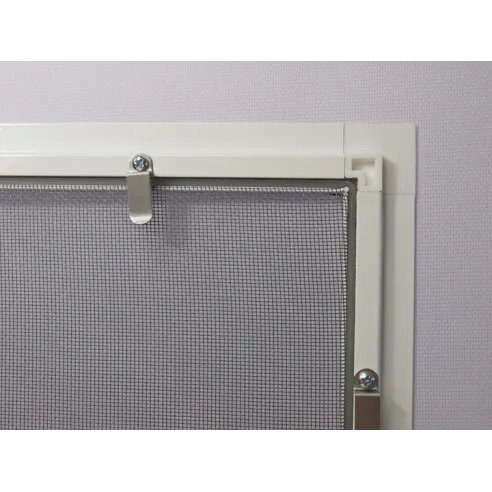

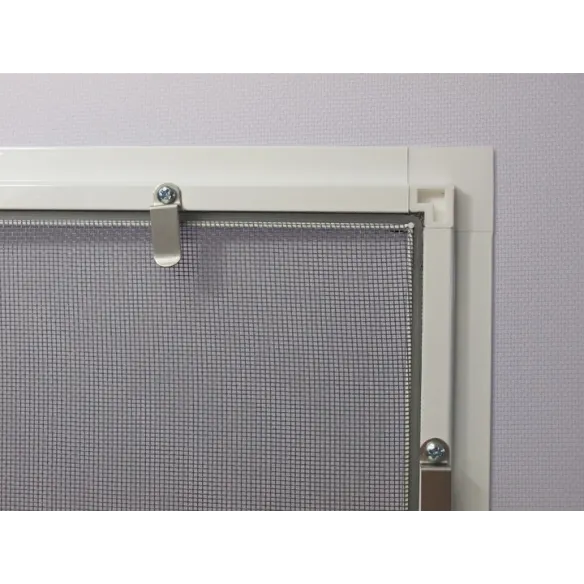

This rotary swivel bracket is designed for the easy and secure installation of frame mosquito nets. It provides a tight grip between the screen and the window frame, ensuring maximum protection against insects without drilling.

Key Benefits:

• Easy Installation: No specialized tools required.

• Versatile: Fits most standard aluminum insect screen profiles.

• Purchase Options: Available per piece or in bulk packs of 100 units.

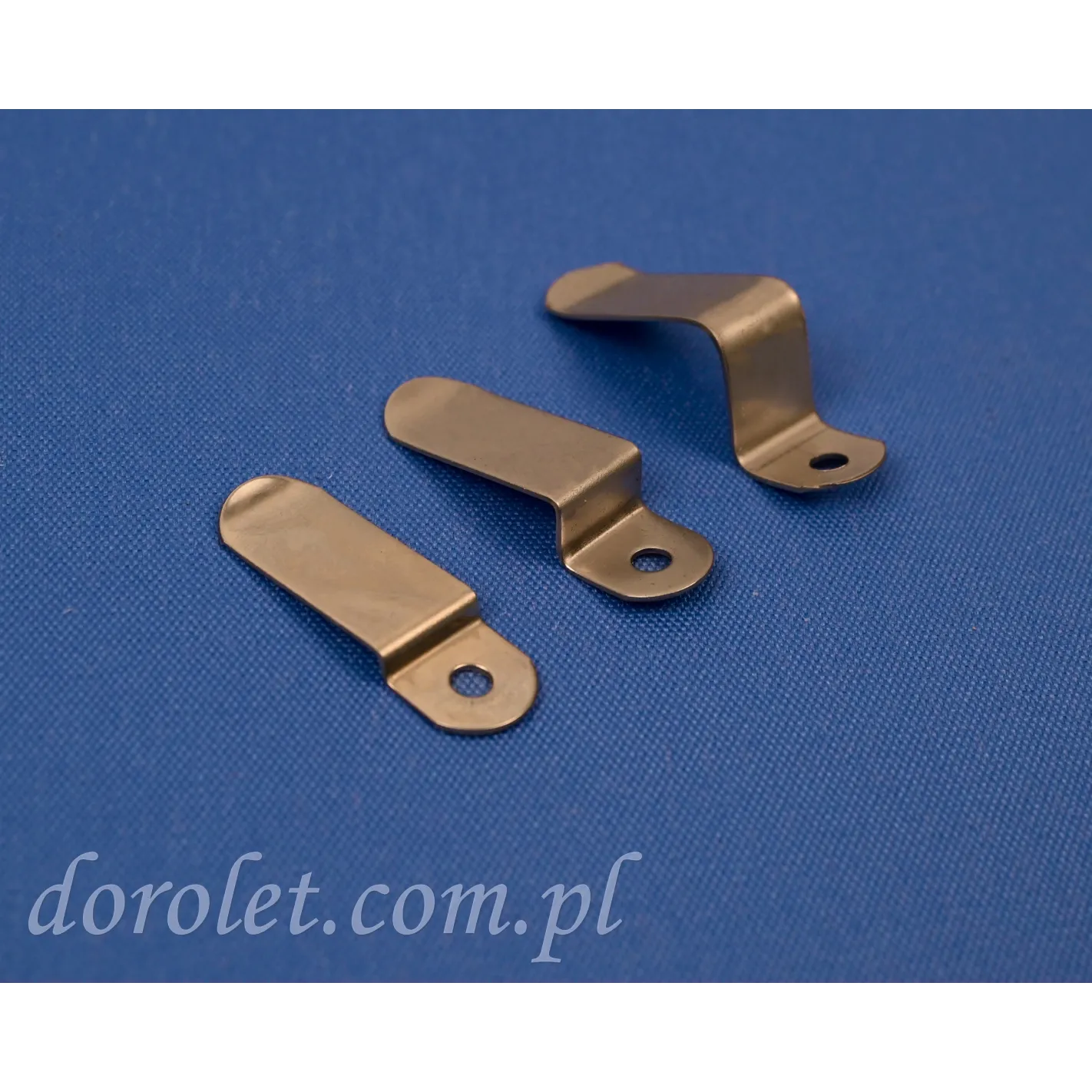

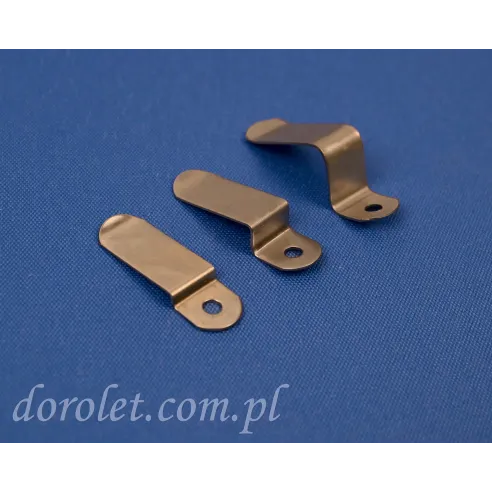

Available Sizes

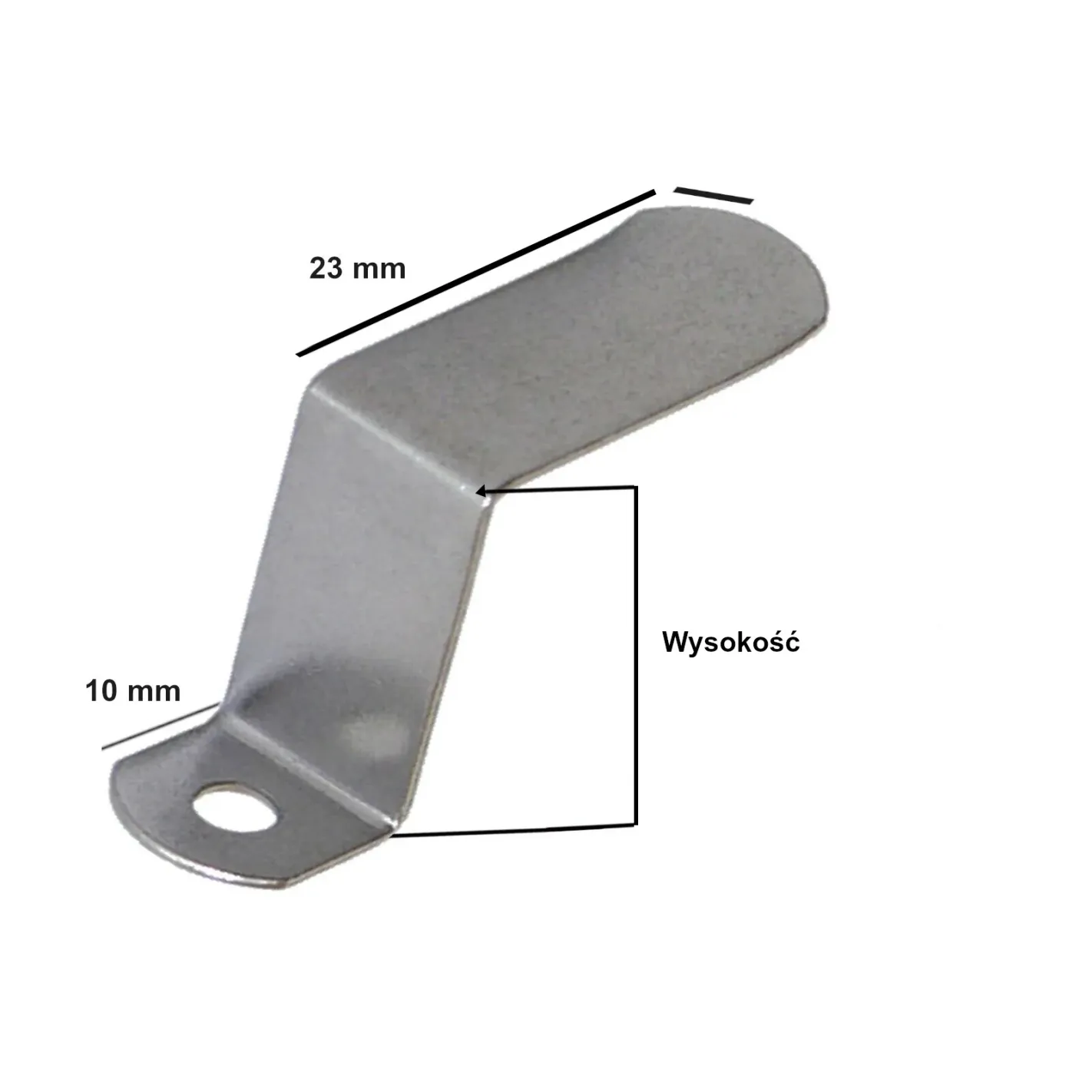

The sizes listed refer to the Z-dimension (the external height of the clip). Choose from a variety of options: 0mm, 3mm, 5mm, 7mm, 9mm, 12mm, 15mm, 18mm, 20mm, 23mm.

Sizing Guide: How to measure

If you have purchased a mosquito net profile from our shop, the swivel brackets must be selected according to the instructions below :

0 mm - for a window frame up to 1 cm thick

3 mm - for a window frame with a thickness of 1.1 to 1.2 cm

5 mm - for window frame thickness from 1.3 to 1.4 cm

7 mm - for a window frame thickness from 1.5 to 1.6 cm

9 mm - for a window frame thickness from 1.7 to 1.8 cm

12 mm - for a window frame thickness from 2.0 to 2.1 cm

15 mm - for a window frame thickness from 2.3 to 2.4 cm

18 mm - for a window frame thickness from 2.6 to 2.7 cm

20 mm - for a window frame thickness from 2.8 to 2.9 cm

23 mm - for window frame thickness from 3.1 to 3.2 cm
