Aluminum Square Rotary Rod for Vertical Blinds

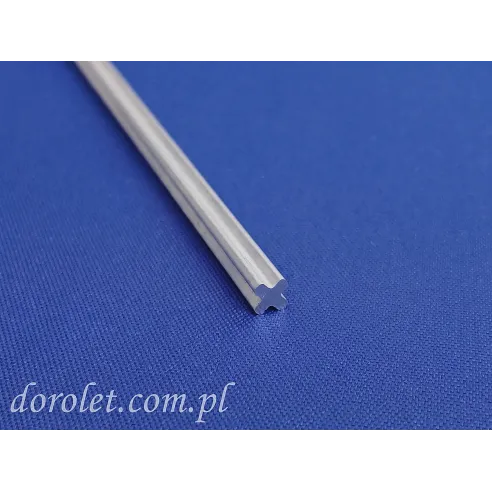

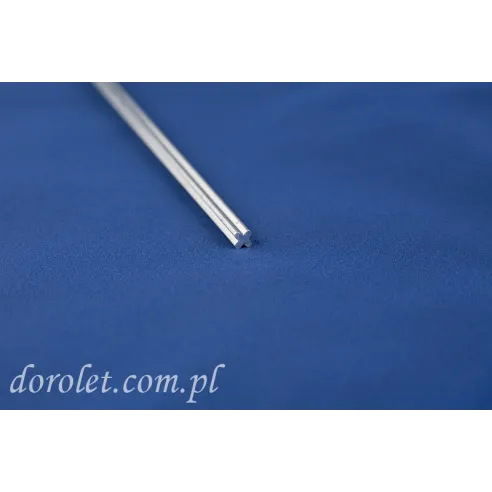

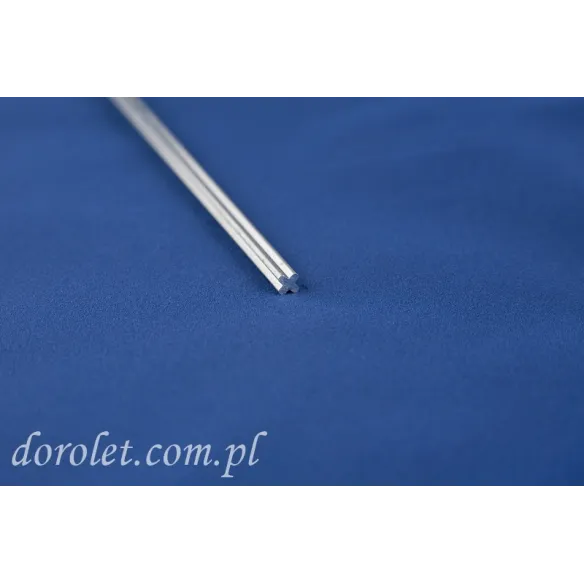

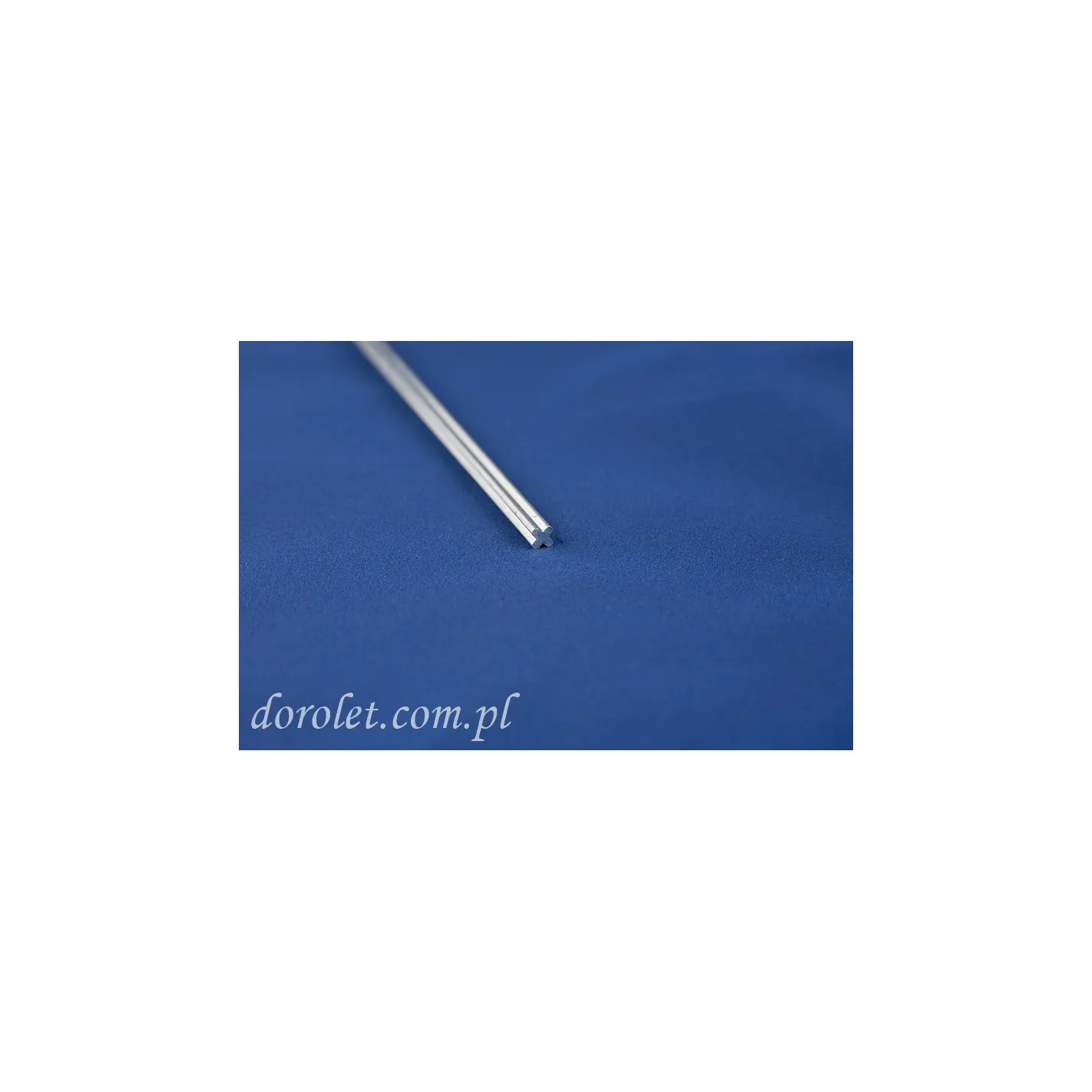

Aluminum Square Rotary Rod / Tilt Bar for Vertical Blinds

High-quality square aluminum rotary rod engineered for the repair, maintenance, and assembly of vertical blind track mechanisms. This drive shaft transfers rotational force to the carrier trucks, enabling smooth tilting of vertical louvers.

Key Features & Benefits:

• Premium Material: Manufactured from lightweight and durable aluminum alloy, offering excellent resistance to corrosion, bending, and long-term wear.

• Universal Fit: Features a standard 4-point cross/star shape (5 mm outer diameter, 2.5 mm at the narrowest point) compatible with most standard vertical blind mechanisms.

• Custom Cut to Order: Get the exact size required for your blind system without extra hassle.

Technical Specifications:

• Application: Rotary and tilt mechanisms for vertical blinds

• Material: Aluminum alloy

• Outer Diameter: 5 mm

• Narrowest Diameter: 2.5 mm

• Cross-section: Square / Cross / Star profile

• Maximum shipping length: 170 cm

How to order a custom length:

If your required length is not listed as a standard option, please select the next available longer size.

• Example: If you need a 143 cm rod, select 150 cm from the dropdown menu.

• Then, in the "Order Notes" section in your cart, specify the exact length: 143 cm. We will cut it precisely to your requirements before shipping.
