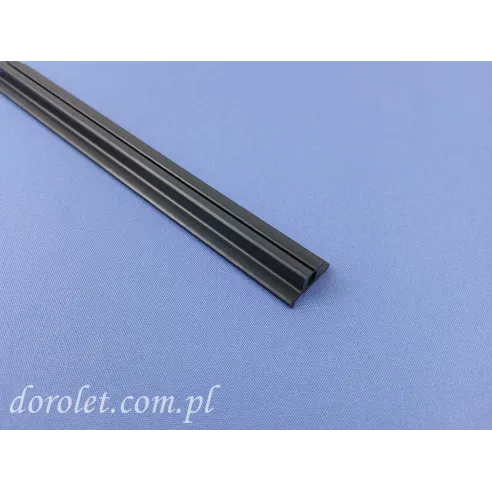

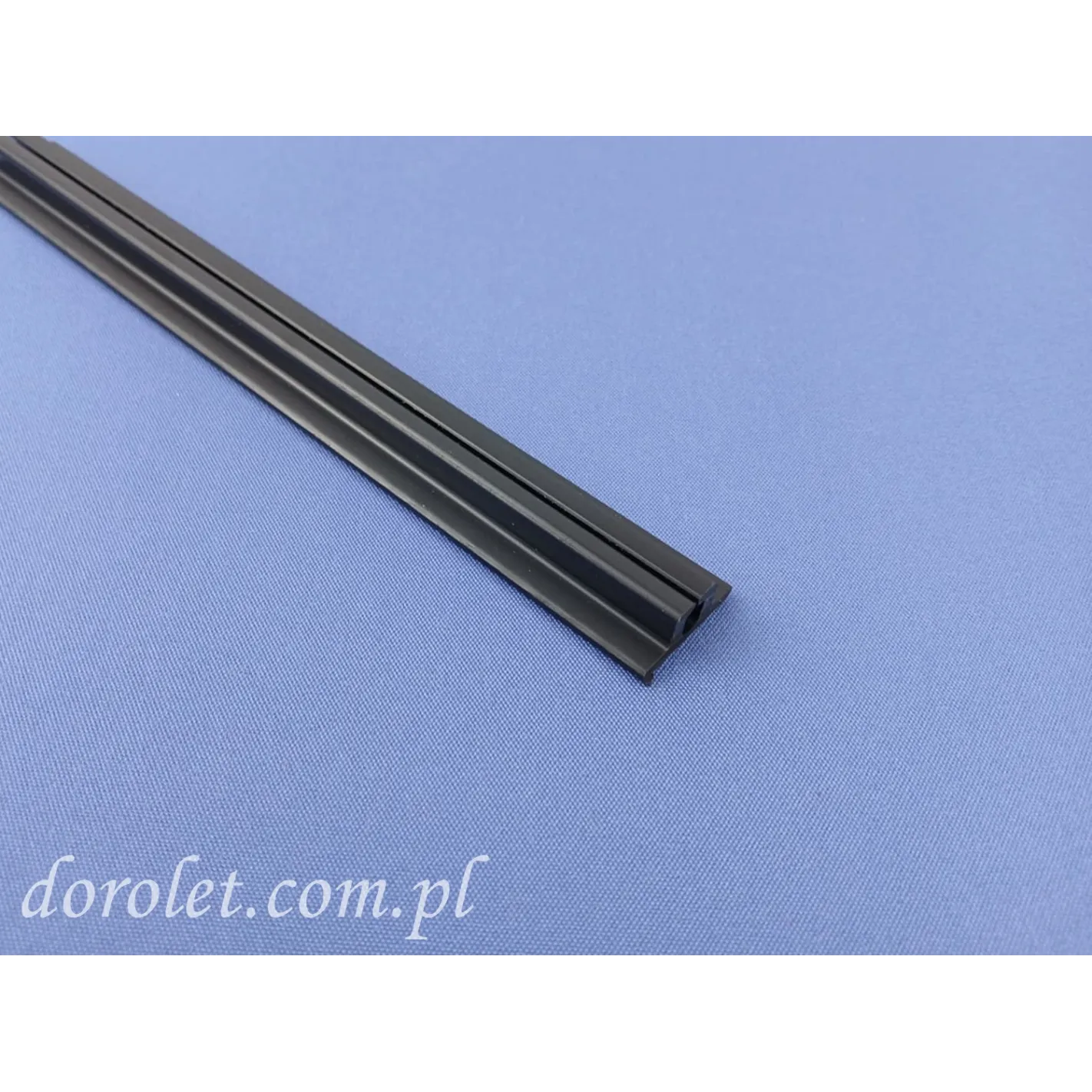

Inner Track B102 for ZIP Screen

B102 Inner Track – Premium Zipper Guide Insert for B103 ZIP Screen Systems

The B102 Inner Track is a crucial component engineered for modern outdoor vertical ZIP screens (such as the B103 system). It guides and locks the edge zipper attached to the screen fabric, preventing the curtain from blowing out of the side channels even during high winds.

Designed for large-format external roller blinds (up to 400 cm wide by 320 cm high), this guide insert ensures constant fabric tension and smooth, silent shading performance.

Key Features & Benefits

• Wind-Proof Retention: Securely locks the fabric zipper inside the side guide profile.

• Weather & UV Resistance: Manufactured from high-density plastic that withstands extreme outdoor temperatures and prolonged sun exposure.

• Quiet Fabric Movement: Significantly reduces friction and noise during motorized or manual operation.

• Cushioning Support: Designed to work seamlessly with tension springs or 5 cm mute sponges positioned at 35–40 cm intervals.

Technical Specifications

• Product Name: B102 Inner Track / Prowadzenie zamka B102

• System Compatibility: B103 External ZIP Screen System

• Manufacturer Code: B102-2022-010

• Standard Length: 5.8 m profile length

• Color: Black (010)

• Matching Components: B103 Guide Base (B103-2002B) & Guide Cover (B103-2002A)

Instructions for ordering custom-length profiles:

For custom profile dimensions, we use a simple ordering system:

1. From the drop-down menu, select the nearest longer standard section (e.g., for a length of 143 cm, choose the 150 cm option).
2. In the cart, in the "Order comments" field, enter the exact length you need (e.g., 143 cm).
3. Your profile will be cut to the specified size.

Important logistics information: The maximum profile length shipped by courier is 170 cm.

Installation Guidelines:

For optimal fabric dampening and wind resistance:

1. Insert the B102 inner track into the B103 aluminum guide base.

2. Mount B102 springs (A) or 5 cm long mute sponges (B) along the inner track.

3. Maintain a spacing of 35 to 40 cm between each spring or sponge block for balanced tension.
