Rear Box Profile B103 Back Cassette for ZIP Screen - Anthracite

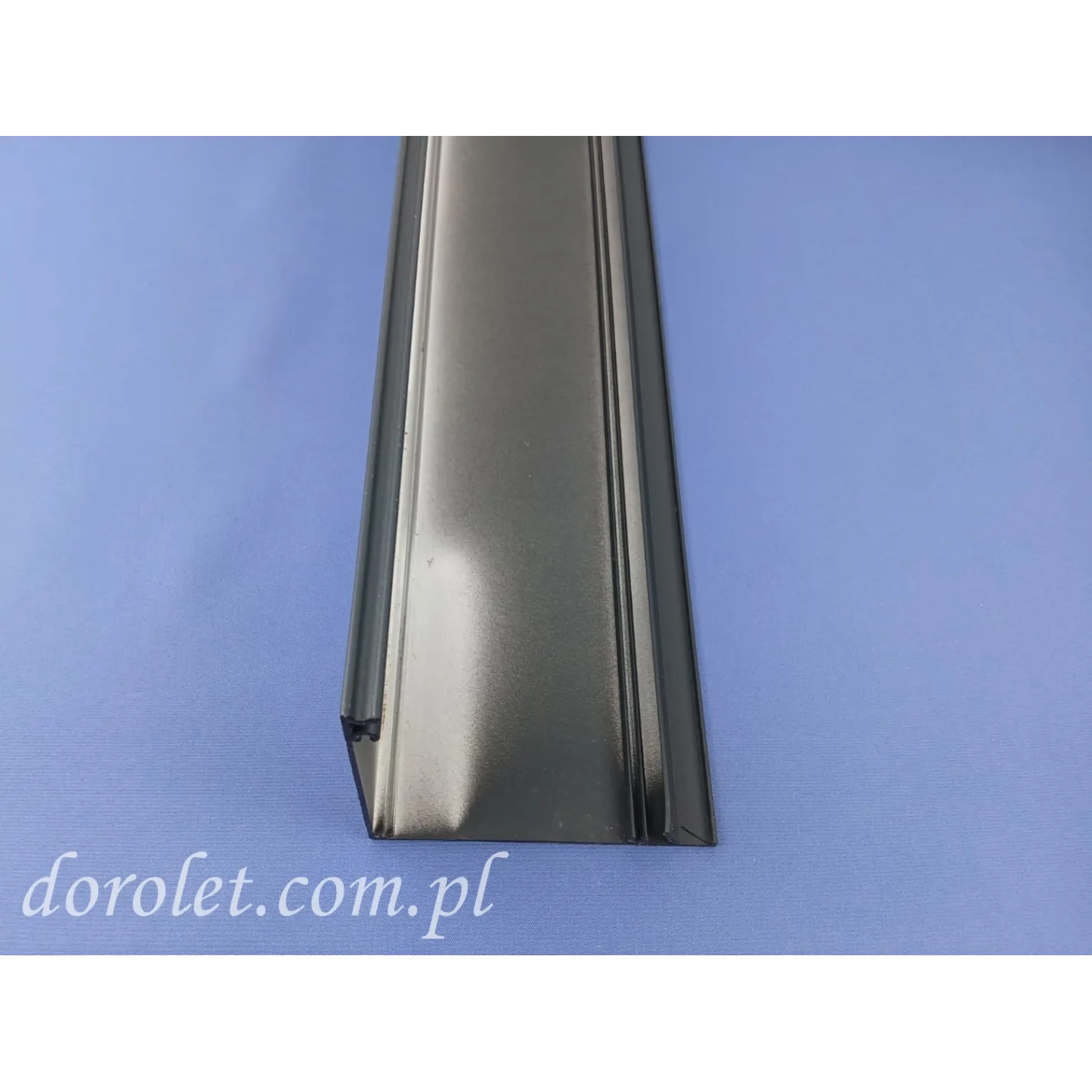

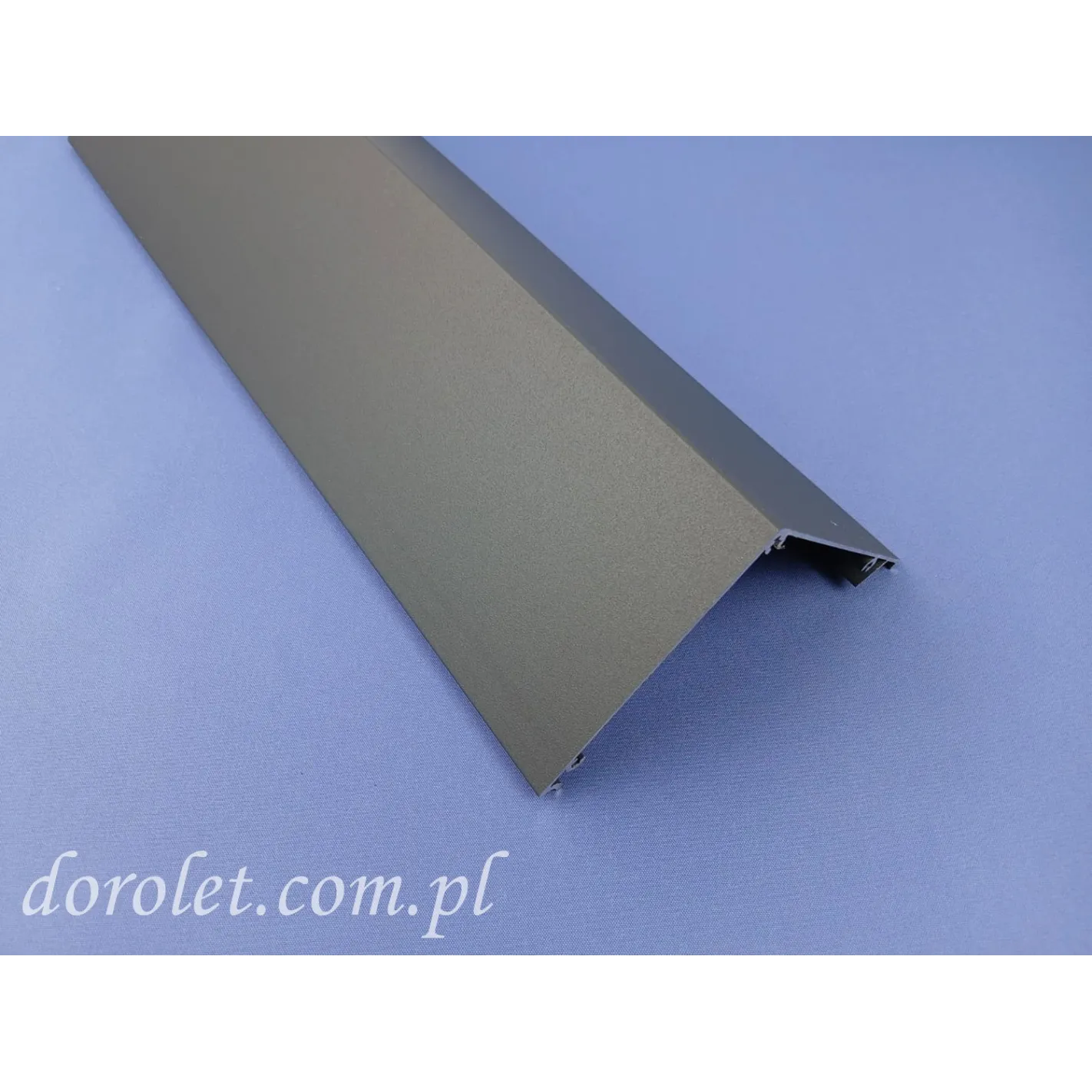

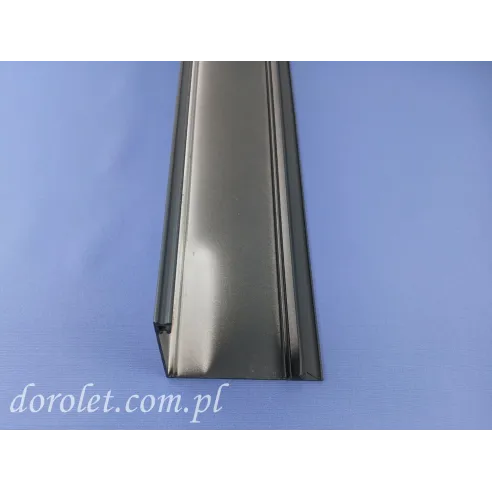

Rear Box Profile B103 – Aluminium Back Cassette for External ZIP Screen Blinds (Anthracite)

The B103 rear box profile serves as the structural foundation and protective enclosure for external ZIP screen roller blind systems. Engineered for premium architectural standards, it ensures precise component alignment, weather resistance, and an elegant exterior design.

Technical Specifications & Dimensions

• Profile Type: B103 Box – Rear Profile (Back Cover)

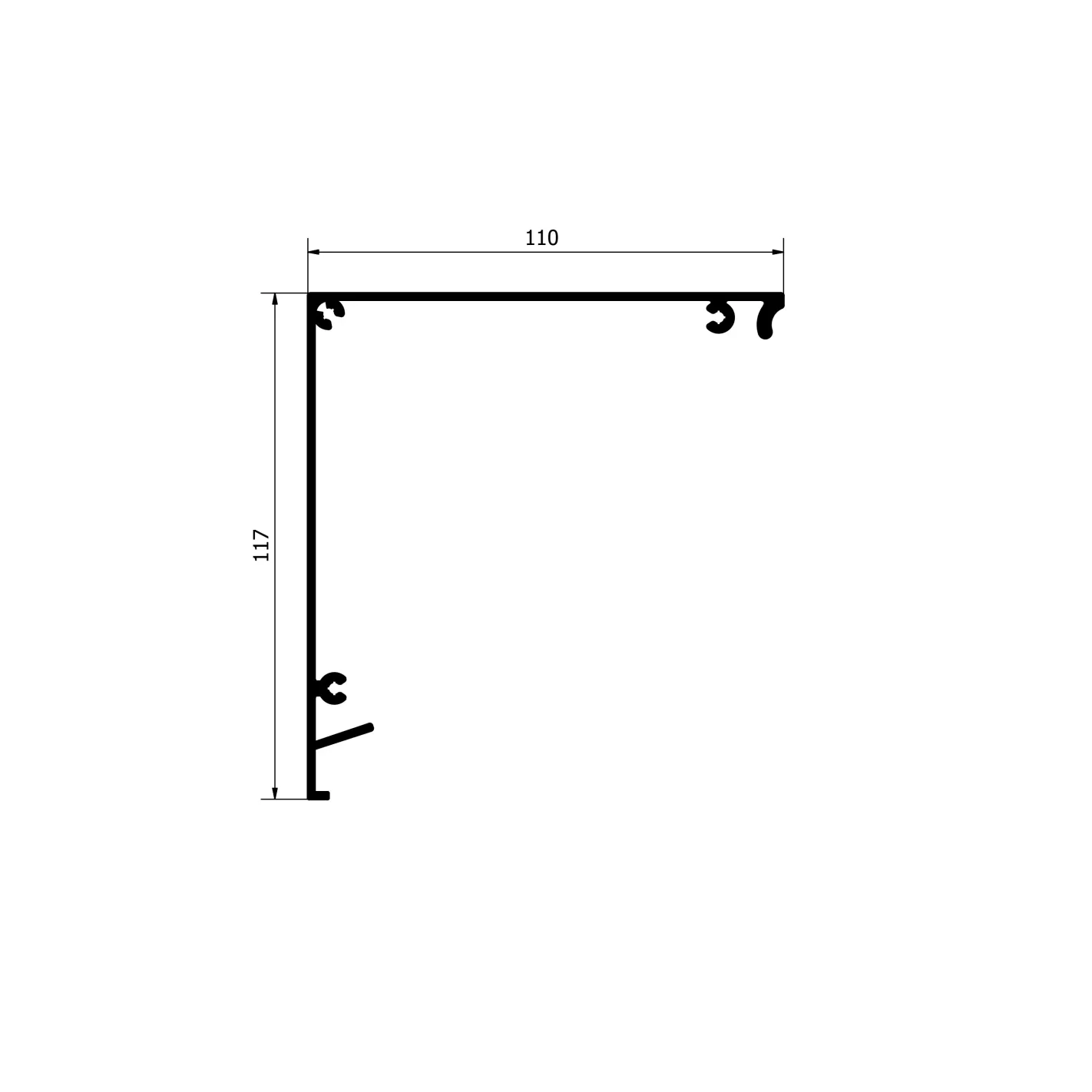

• Cross-section Dimensions: 110 mm (depth) × 117 mm (height)

• Material: Premium Extruded Aluminium

• Surface Finish: Weather & UV-resistant powder coating

• Color: Anthracite (Color Code: 003)

• Compatibility: Front box profile B103, 70 mm winding tube, side caps B103 (left/right), side guide rails B103.

Key Features & System Advantages

• Superior Durability: Rigid aluminium construction shields internal components and screen fabric from adverse weather conditions, wind load, and debris.

• Integrated Screw Channel System: Features dedicated slots designed for mounting the mute PVC tube (code B102-1054-222), eliminating vibrations and ensuring quiet operation.

• Flexible Installation: Allows easy and secure mounting to building facades or window niches while ensuring smooth integration with side cassette cups.

• Engineered for Large Spans: Designed to support ZIP screen dimensions up to 400 cm wide × 320 cm high (minimum dimensions 70 cm × 100 cm).

Applications

Ideal for manufacturers and installers of outdoor ZIP screen blinds used in modern residential buildings, office complexes, pergolas, and patio enclosures.

Instructions for ordering custom-length profiles:

For custom profile dimensions, we use a simple ordering system:

1. From the drop-down menu, select the nearest longer standard section (e.g., for a length of 143 cm, choose the 150 cm option).

2. In the cart, in the "Order comments" field, enter the exact length you need (e.g., 143 cm).

3. Your profile will be cut to the specified size.

Important logistics information: The maximum profile length shipped by courier is 170 cm.
